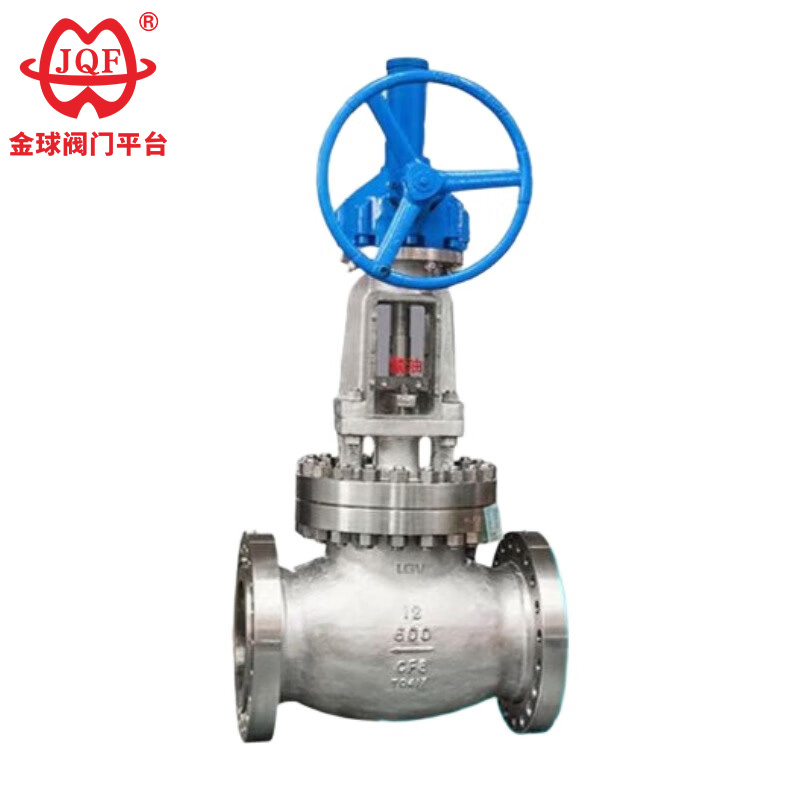

Oxygen Special Globe Valve

JQF Valve factory manufactures high quality JY41W and JY41Y type oxygen special globe valves made of high-quality silicon brass or stainless steel, offering advantages such as high mechanical strength, wear resistance, and good safety. Strict oil-proofing measures are incorporated during manufacturing, and all parts undergo rigorous degreacing treatment before installation. All sizes include conductive threaded flanges to prevent static electricity, and the valve parts are protected from contamination by dust and oil. This product is available in two materials: one with a cast silicon brass body, cap, and disc, and the other with high-quality stainless steel for the body, cap, and disc.

Send Inquiry

Product Description

JQF Valve factory's durable oxygen special globe valves are cast from high-quality silicon brass or stainless steel, featuring high mechanical strength, excellent wear resistance, and superior safety. Utilizing an oxygen tubing system, they offer optimal explosion-proof and flame-retardant performance, eliminating potential safety hazards related to oxygen and road conditions. Our efficient quality management system, from raw material production to finished product processing, and our continuous development of new products and technologies are our two long-term competitive advantages. We provide strong support for oxygen special globe valves that meet customer and market demands, and our responsible and reliable after-sales service, along with our ability to meet customized product requirements, are the guarantees of our sustainable development.

1. Fire-retardant and flame-retardant: The core components of the Oxygen Special Globe Valve are made entirely of copper, which is non-combustible and spark-free, ensuring safety even in the event of high-speed airflow carrying particles.
2. Multiple safety features: The sealed design is dustproof, waterproof, and oil-proof. All oxygen-contacting parts are thoroughly cleaned before assembly, ensuring no grease residue. Special filling materials are used to ensure safe and reliable use.

Performance parameters

Nominal diameter（DN）		15－400
Nominal pressure（MPa）		1.6	2.5	4
test pressure	strength	2.4	3.75	6
（MPa）	seal	1.76	2.75	4.4
proper temperature		≤200℃
Suitable media		oxygen
Body		Silicon brass, stainless steel
Valve stem		stainless steel
Spool		Copper, stainless steel
filler		Teflon

The main shape and connection dimensions

Nominal diameter	The main dimensions and connection dimensions
Nominal diameter	L	D	D1	D2	b	Z-d	H	D0
JY41W-16P
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	230	160	125	100	16-3	4-Φ18	358	240
65	290	180	145	120	18-3	4-Φ18	373	240
80	310	195	160	135	20-3	8-Φ18	435	280
100	350	215	180	155	20-3	8-Φ18	500	300
125	400	245	210	185	22-3	8-Φ18	614	320
150	480	280	240	210	24-3	8-Φ23	674	360
200	600	335	295	265	26-3	12-Φ23	811	400
250	650	405	355	320	30-3	12-Φ25	969	450
300	750	460	410	375	30-3	12-Φ25	1145	580
350	850	520	470	435	34-4	16-Φ25	1280	640
400	980	580	525	485	36-4	16-Φ30	1452	640
JY41W-25P
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	230	160	125	100	20-3	4-Φ18	358	240
65	290	180	145	120	22-3	8-Φ18	373	240
80	310	195	160	135	22-3	8-Φ18	435	280
100	350	230	190	160	24-3	8-Φ23	500	300
125	400	270	220	188	28-3	8-Φ25	614	320
150	480	300	250	218	30-3	8-Φ25	674	360
200	600	360	310	278	34-3	12-Φ25	811	400
250	650	425	370	332	36-3	12-Φ30	969	450
300	750	485	430	390	40-4	16-Φ30	1145	580
350	850	550	490	448	44-4	16-Φ34	1280	640
400	980	610	550	505	48-4	16-Φ34	1452	640

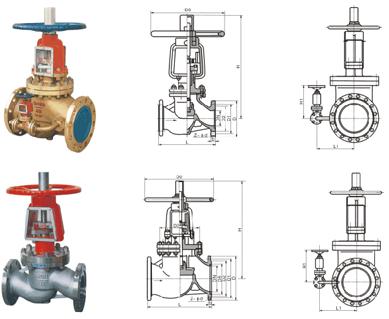

Structure picture
