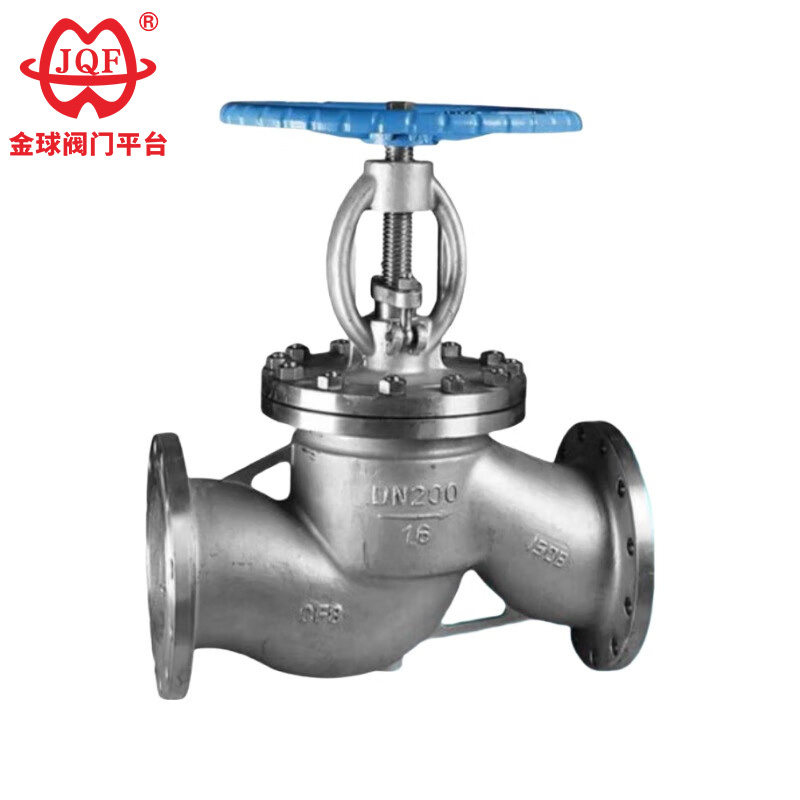

Stainless Steel Globe Valve

Durable J41H, J41Y, J41W stainless steel globe valve produced by JQF Valve. Its opening and closing part is a cylindrical valve flap, the sealing surface is flat or conical, and the valve flap moves linearly along the center line of the fluid. The stainless steel cut-off valve is only suitable for full opening and full closing. It is generally not used to adjust the flow rate. It can be adjusted and throttled when customized.

Send Inquiry

Product Description

Foshan Jinqiu Valve Co., LTD. is a high quality stainless steel globe valve manufacturer integrating design, development, manufacturing, sales, and service. Our main products include various control valves, electric valves, pneumatic valves, solenoid valves, manual valves, actuators, and valve accessories.
Our stainless steel globe valve is a gate valve with a stainless steel cast body, flanged connections at both ends, and a gate valve structure. Its core function is to precisely regulate flow or reliably shut off the medium in pipelines.
Due to its excellent corrosion resistance and reliable sealing performance, it has become one of the preferred valves for corrosive media or high-cleanliness applications in chemical, petrochemical, food, and pharmaceutical industries.
Customers trust JQF valves' high quality, reliable performance, and good and comprehensive customer service. We will continue to innovate to provide first-class valve solutions.

1. Simple Structure: The design of stainless steel globe valve is simple, making manufacturing and maintenance convenient and efficient.
2. Rapid Response: Short working stroke allows for extremely fast valve opening and closing.
3. Durable Sealing: Excellent sealing effect, minimal frictional resistance, and long service life.

Executive Standard

Design specifications: GB / T 12235
Structure length: GB / T 12221
Flange connection: JB / T 79
Test and inspection: JB / T 9002
Product Identification: GB / T 12220
Delivery specifications: JB / T 7928

Performance Parameters

model		J41H-16C～160C	J41Y-16C～160C	J41W-16P～160P
Work pressure（MPa）		1.6～16.0
proper temperature（℃）		≤425		≤150
Suitable media		Water, steam, oil		Weak corrosive medium
material	Body, bonnet	Carbon steel		Chrome nickel-titanium stainless steel
	Valve stem	Chrome stainless steel		Chrome nickel-titanium stainless steel
	Sealing surface	Surfacing iron-based alloys	Hardfacing alloy	Body material
	filler	Asbestos graphite, flexible graphite, PTFE

The main shape and connection size

Nominal diameter	The main dimensions and connection dimensions
Nominal diameter	L	D	D1	D2	b	Z-d	H	D0
J41H-16C
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	230	160	125	100	16-3	4-Φ18	358	240
65	290	180	145	120	18-3	4-Φ18	373	240
80	310	195	160	135	20-3	8-Φ18	435	280
100	350	215	180	155	20-3	8-Φ18	500	300
125	400	245	210	185	22-3	8-Φ18	614	320
150	480	280	240	210	24-3	8-Φ23	674	360
200	600	335	295	265	26-3	12-Φ23	811	400
250	650	405	355	320	30-3	12-Φ25	969	450
300	750	460	410	375	30-3	12-Φ25	1145	580
350	850	520	470	435	34-4	16-Φ25	1280	640
400	980	580	525	485	36-4	16-Φ30	1452	640
J41H-25C
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	230	160	125	100	20-3	4-Φ18	358	240
65	290	180	145	120	22-3	8-Φ18	373	240
80	310	195	160	135	22-3	8-Φ18	435	280
100	350	230	190	160	24-3	8-Φ23	500	300
125	400	270	220	188	28-3	8-Φ25	614	320
150	480	300	250	218	30-3	8-Φ25	674	360
200	600	360	310	278	34-3	12-Φ25	811	400
250	650	425	370	332	36-3	12-Φ30	969	450
300	750	485	430	390	40-4	16-Φ30	1145	580
350	850	550	490	448	44-4	16-Φ34	1280	640
400	980	610	550	505	48-4	16-Φ34	1452	640

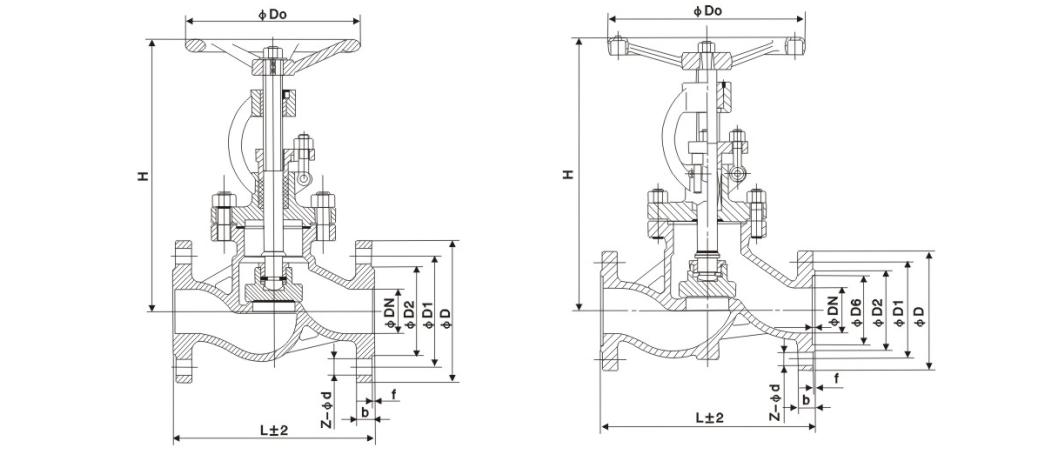

Structure picture
