Article Summary: Wedge Gate Valves are crucial components in controlling the flow of liquids and gases under high-pressure conditions. In this post, we'll explore their functionality, advantages, applications, and how to choose the best valve for your system. Whether you're designing a new pipeline or upgrading an existing one, this guide will help you make an informed decision.
Wedge Gate Valves are fundamental in the control of fluid flow in various industries, especially in systems that involve high pressures. These valves are designed for applications that require a reliable sealing mechanism to prevent leakage. As the demand for efficient fluid control increases, understanding the role of wedge gate valves becomes more critical. In this article, we will dive into the different aspects of wedge gate valves, from their functionality to common challenges encountered with these valves.
Wedge Gate Valves are a type of valve used to start or stop fluid flow in pipelines. These valves feature a wedge-shaped gate that moves between two seats to create a seal. When the valve is open, the gate moves completely out of the flow path, allowing the fluid to pass freely. When closed, the gate presses tightly against the valve seats to prevent any flow.
| Feature | Description |
|---|---|
| Design | Wedge-shaped gate with two opposing seats |
| Function | On/off flow control |
| Material | Typically made from stainless steel, bronze, or cast iron |
| Application | Used in high-pressure systems in industries like oil, gas, and water treatment |
The operation of a wedge gate valve is relatively simple yet highly effective. The wedge gate is forced into a pair of seats when the valve is closed, ensuring that no fluid can pass through. When the valve is opened, the gate moves upwards, away from the seats, allowing the fluid to flow. This movement is typically powered by a manual wheel or automated actuator.
Wedge Gate Valves are primarily used in applications where full flow is needed when the valve is open and a tight shutoff is required when the valve is closed. These valves are commonly used in:
Choosing the right wedge gate valve involves considering factors such as pressure ratings, material compatibility, and the specific needs of your system. Here are some key points to keep in mind:
Although durable, wedge gate valves can face issues such as:
A: A wedge gate valve is designed for full on/off control, while a globe valve is used for throttling and flow regulation.

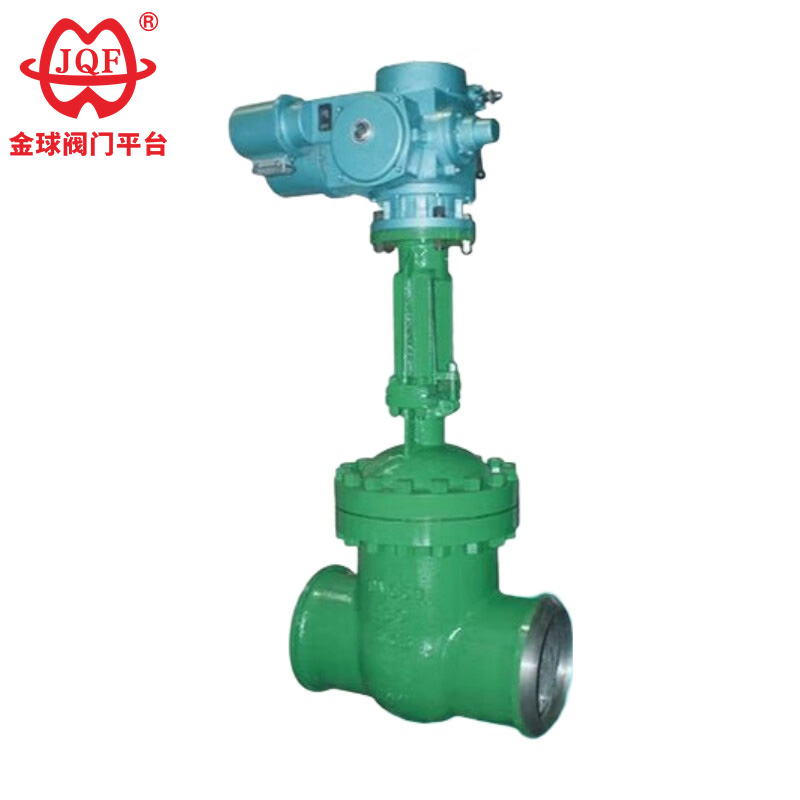

A: Yes, wedge gate valves can be automated with electric or pneumatic actuators for remote control.
Wedge Gate Valves are vital components in many high-pressure fluid systems due to their reliability and ability to provide a tight seal. Choosing the right valve for your system ensures optimal performance and longevity. Whether you need a valve for industrial applications or a customized solution, JQF offers high-quality wedge gate valves tailored to your specific needs.
If you need further information or assistance in selecting the right valve for your system, feel free to contact us. Our team at JQF is ready to provide expert guidance and help you choose the best valve for your project.
