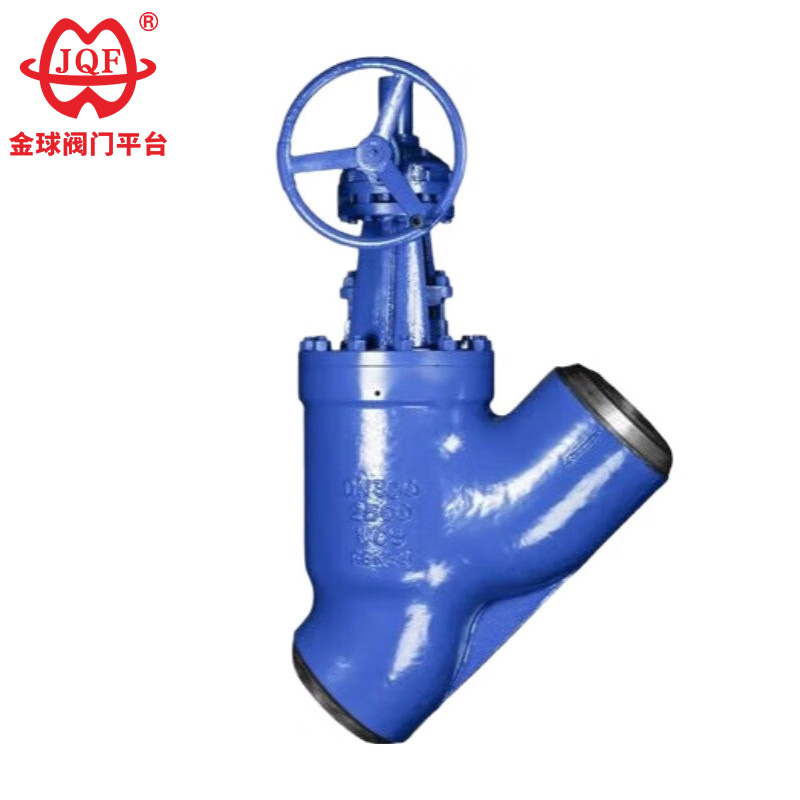

Y Type Jacketed Globe Valve

JQF Valve factory has been established for over 20 years. Our innovative R&D department continuously develops new molds and processing technologies to meet the high standards of our customers. Our advanced Y type jacketed globe valves are suitable for cutting off or connecting pipeline media under various conditions in industries such as petroleum, chemical, pharmaceutical, fertilizer, and power. The nominal pressure ranges from PN1.6 to 6.4 MPa, and the operating temperature ranges from -29 to 550℃. Applicable media include water, oil, steam, and acidic media.We are committed to providing quality assurance through leading technology and management, enhancing our brand image through innovative product development, and treating all customers with integrity. We sincerely provide high-quality, efficient, and cost-effective services. We welcome friends from all walks of life to visit and inspect our factory.

1. The Y type jacketed globe valve uses carefully selected high-quality raw materials and incorporates multiple advanced technologies to achieve refined craftsmanship and excellent quality; it possesses excellent sealing performance.
2. The Y type jacketed globe valve is suitable for diameters ranging from a few millimeters to several meters, and can be used in environments ranging from high vacuum to high pressure. When the sphere rotates 90°, it should present all spherical surfaces at the inlet and outlet to cut off the flow.
3. The Y type jacketed globe valve is easy and convenient to operate, opening and closing quickly; remote control can be easily achieved by rotating only 90 degrees from fully open to fully closed.
4. Low fluid resistance; its resistance coefficient is related to the cross-section of the pipe of the same length, and the resistance is equal for pipe sections of the same length.

Implementation Standards

Design and manufacture of standards: ASME B16.34, JB / T3595, E101
Structure length standard: GB / T 12221-2005
Socket Socket: ASME B16.11
Butt welding end: ASME B16.25
Pressure temperature grade: GB / T 12224-2005
Test test standards: JB / T3595

Product parts materials

Product appearance and structure size
