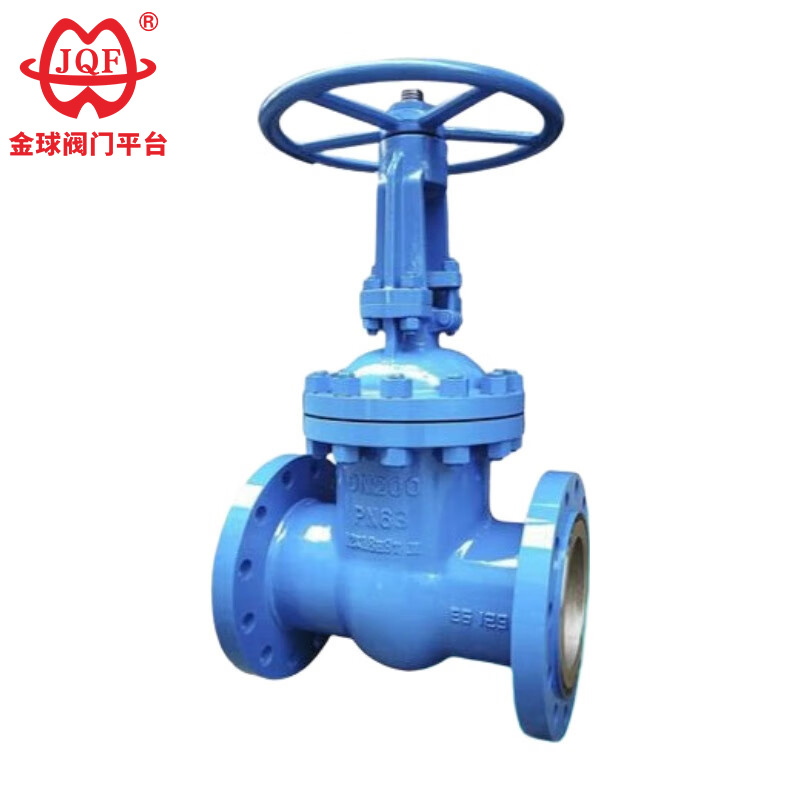

JQF Valve factory manufactures high quality GB standard flanged gate valves, which are widely used in petrochemical, thermal power, and other petroleum product and steam pipelines as opening and closing devices for connecting or cutting off pipeline media. By selecting different materials, customized GB standard flanged gate valves are suitable for various media such as water, steam, oil, nitric acid, acetic acid, strong oxidizing media, and urea, and are available in manual, bevel gear, and electric drive versions.
Pre-Installation Checks
Verify GB standard flanged gate valves material compatibility with fluid media, temperature, and pressure. Inspect flange faces for scratches, ensure gasket material matches service conditions, and confirm bolts/nuts meet strength requirements .
Installation Alignment
Never force-align GB standard flanged gate valves. Misalignment causes seat distortion, leaks, or structural stress. Support pipelines independently near the valve. Tighten bolts gradually in a star pattern to uniform torque . Retorque after 24–48 hours of system operation.
Operational Discipline
Fully open or fully close the GB standard flanged gate valves—partially open positions accelerate seat/gate erosion from high-velocity flow. Use handwheels only; avoid wrenches/levers. Stem lubrication (EP-grade grease) is mandatory quarterly.
Testing Maintenance
Hydrostatically test GB standard flanged gate valves post-installation at 1.5× PN rating before system commissioning. Isolate valves from downstream equipment during testing. Annually: check packing gland tightness, stem corrosion, and flange-joint integrity. Replace worn packing rings immediately to stem fugitive emissions.
Storage Handling
Store valves indoors, protected from moisture. Keep end caps on until installation.
1. High-efficiency design: GB standard flanged gate valves feature a rationally configured design that efficiently utilizes space, achieving superior valve body stability, minimized fluid resistance, and optimized flow coefficient.
2. Enhanced seal life: The sealing interface utilizes stainless steel and a carbide coating, minimizing wear and significantly extending service life.
3. Reliable and easy to operate: Flexible graphite packing ensures reliable seal integrity, resulting in smooth operation and minimal operating torque.
4. Versatile actuation methods: GB standard flanged gate valves are compatible with various actuation mechanisms, including manual, pneumatic, electric, and gear-driven, to meet diverse application requirements.
5.Diverse structures: Available in various structural configurations, including flexible wedge single gate, rigid wedge single gate, or parallel (double) gate.
Design specifications: GB / T 12234
Structure length: GB / T 12221
Connecting flange: JB / T 79.1
Test and inspection: JB / T 9092
Pressure - Temperature: GB / T 9131
Product Identification: GB / T 12220
| Nominal pressurePN（MPa) | case | test pressure（MPa) | Sealed | |
| Sealed (liquid) | Seal (gas) | |||
| 1.6 | 2.4 | 1.8 | 0.6 | 1.8 |
| 2.5 | 3.8 | 2.8 | 0.6 | 2.8 |
| 4.0 | 6.0 | 4.4 | 0.6 | 4.4 |
| 6.4 | 9.6 | 7.0 | 0.6 | 7.0 |
| 10.0 | 15.0 | 11.0 | 0.6 | 11.0 |
| 16.0 | 24.0 | 18.0 | 0.6 | 18.0 |
| Shell material | Suitable media | Applicable temperature (℃) |
| Carbon steel (C type) | Water, steam, oil | ≤425 |
| Chromium nickel titanium steel (P type) | Nitric acids | ≤200 |
| Chrome nickel molybdenum titanium steel (R type) | Acetic acid | ≤200 |
| Chrome-molybdenum steel (type I) | Water, steam, oil | ≤550 |
| Body, bonnet | Valve plate, seat | Valve stem | Stem nut | filler | Handwheel |
| Carbon steel | High-quality carbon steel + carbide or stainless steel | Chrome stainless steel | Aluminum bronze | Graphite asbestos packing | Malleable iron |
| Chromium nickel titanium steel | Stainless steel, stainless steel + cemented carbide | Chrome nickel-titanium stainless steel | Aluminum bronze | Teflon | Malleable iron |
| Chromium nickel molybdenum titanium steel | Stainless steel, stainless steel + cemented carbide | Chrome nickel-titanium stainless steel | Aluminum bronze | Teflon | Malleable iron |
| Chrome-molybdenum steel | Alloy steel + Carbide | Chrome-molybdenum steel | Aluminum bronze | Flexible asbestos | Malleable iron |

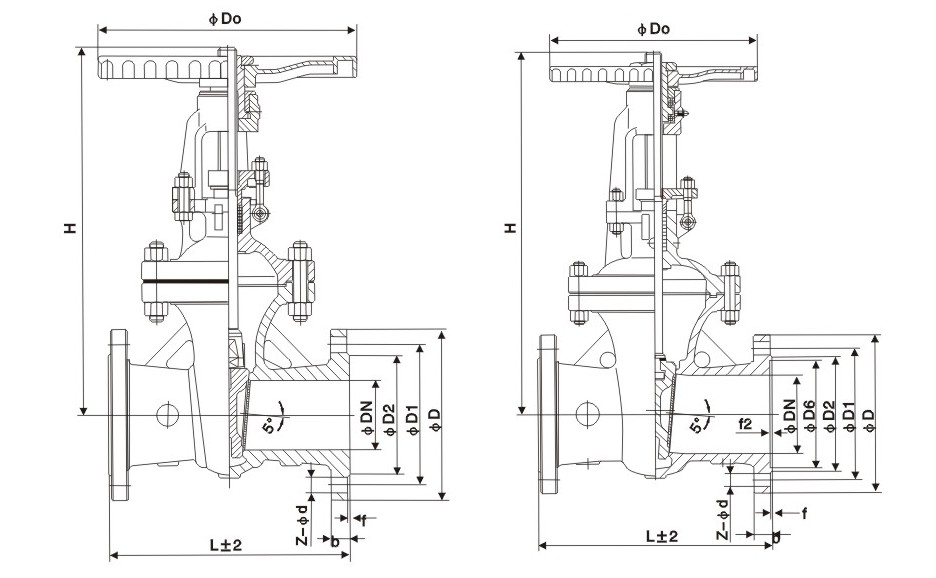

| Nominal diameter | The main dimensions and connection dimensions | |||||||
| L | D | D1 | D2 | b | Z-d | H | D0 | |
| Z41H-16C | ||||||||
| 15 | 130 | 95 | 65 | 45 | 14-2 | 4-Φ14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-Φ14 | 190 | 140 |
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-Φ14 | 205 | 160 |
| 32 | 180 | 135 | 100 | 78 | 16-2 | 4-Φ18 | 270 | 180 |
| 40 | 200 | 145 | 110 | 85 | 16-3 | 4-Φ18 | 310 | 200 |
| 50 | 250 | 160 | 125 | 100 | 16-3 | 4-Φ18 | 358 | 240 |
| 65 | 265 | 180 | 145 | 120 | 18-3 | 4-Φ18 | 373 | 240 |
| 80 | 280 | 195 | 160 | 135 | 20-3 | 8-Φ18 | 435 | 280 |
| 100 | 300 | 215 | 180 | 155 | 20-3 | 8-Φ18 | 500 | 300 |
| 125 | 325 | 245 | 210 | 185 | 22-3 | 8-Φ18 | 614 | 320 |
| 150 | 350 | 280 | 240 | 210 | 24-3 | 8-Φ23 | 674 | 360 |
| 200 | 400 | 335 | 295 | 265 | 26-3 | 12-Φ23 | 811 | 400 |
| 250 | 450 | 405 | 355 | 320 | 30-3 | 12-Φ25 | 969 | 450 |
| 300 | 500 | 460 | 410 | 375 | 30-3 | 12-Φ25 | 1145 | 580 |
| 350 | 550 | 520 | 470 | 435 | 34-4 | 16-Φ25 | 1280 | 640 |
| 400 | 600 | 580 | 525 | 485 | 36-4 | 16-Φ30 | 1452 | 640 |
| Z41H-25 | ||||||||
| 15 | 130 | 95 | 65 | 45 | 16-2 | 4-Φ14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-Φ14 | 190 | 140 |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-Φ14 | 205 | 160 |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-Φ18 | 270 | 180 |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-Φ18 | 310 | 200 |
| 50 | 250 | 160 | 125 | 100 | 20-3 | 4-Φ18 | 358 | 240 |
| 65 | 265 | 180 | 145 | 120 | 22-3 | 8-Φ18 | 373 | 240 |
| 80 | 280 | 195 | 160 | 135 | 22-3 | 8-Φ18 | 435 | 280 |
| 100 | 300 | 230 | 190 | 160 | 24-3 | 8-Φ23 | 500 | 300 |
| 125 | 325 | 270 | 220 | 188 | 28-3 | 8-Φ25 | 614 | 320 |
| 150 | 350 | 300 | 250 | 218 | 30-3 | 8-Φ25 | 674 | 360 |
| 200 | 400 | 360 | 310 | 278 | 34-3 | 12-Φ25 | 811 | 400 |
| 250 | 450 | 425 | 370 | 332 | 36-3 | 12-Φ30 | 969 | 450 |
| 300 | 500 | 485 | 430 | 390 | 40-4 | 16-Φ30 | 1145 | 580 |
| 350 | 550 | 550 | 490 | 448 | 44-4 | 16-Φ34 | 1280 | 640 |
| 400 | 600 | 610 | 550 | 505 | 48-4 | 16-Φ34 | 1452 | 640 |
