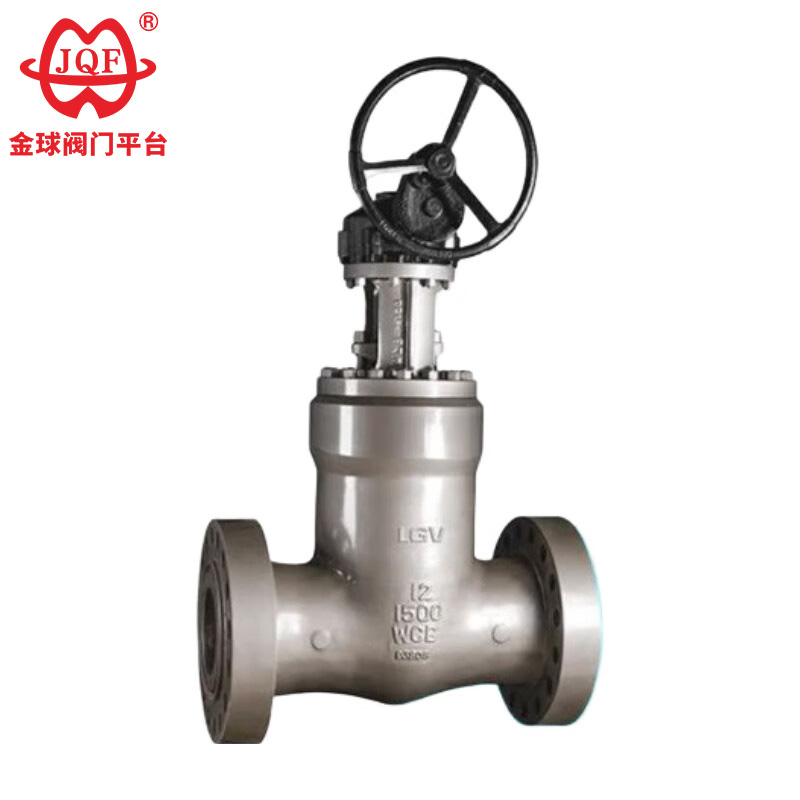

API Power Station Gate Valve

With years of professional experience, JQF Valve provides reliable, high-quality API power station gate valve to major markets in China, Europe, Southeast Asia, and the Middle East with a significant cost advantage. We are committed to becoming your trusted global valve supplier. Experience JQF's excellence—consult us today about your API power station gate valve needs and get a competitive quote for reliable, durable flow control solutions.< style> .sep-p p{ font-size:16px; margin:5px 0; } .sep-p h3{ font-size:20px; font-weight:900; color:#E62129; margin:5px 0; font-family: "Montserrat","Microsoft YaHei", "Arial"; margin-top:30px; position: relative; display: inline-block; } .sep-p h3:after{ content: ""; position: absolute; right:-25px; top:50%; transform: translateY(-50%); width: 0; height: 0; border-left: 8px solid transparent; border-right: 8px solid transparent; border-top: 16px solid #E62129; display:block; } .pages_img{ display: flex; flex-wrap: wrap; justify-content: center; margin:5px 0; } .pages_img img{ width:60%; } .sep-p .img{ text-align:center; } .pages_form table td{ padding: 5px 10px; border: 1px solid #666; color: #666; font-size: 16px; line-height: 1.2; background-color: #fff; } .pages_form table{ width: 100%; line-height: 35px; color: #FFFFFF; text-align: left; margin-bottom:0; }

1.Low Fluid Resistance: The API power station gate valve does not change the flow direction of the medium when opening, does not generate turbulence, has a small pressure drop, and causes minimal obstruction to the pipeline.
2.Smooth Opening and Closing with Low Friction: Special designs, such as the top-entry structure and wedge seal structure, minimize friction between the sealing surfaces during opening and closing, extending service life.
3.Reliable Sealing Performance: The valve's sealing performance is unaffected by changes in pipeline pressure difference, maintaining a reliable seal under various operating conditions.
4.Easy Maintenance: The top-entry structure allows for online inspection and maintenance without disassembling the valve, reducing downtime and lowering costs.
5.Compact Structure and Excellent Performance: The compact and reasonable structural design, short length, and excellent manufacturing process.
6.Wear and Corrosion Resistance: The API power station gate valve disc and seat sealing surfaces are made of hard alloy weld overlay, possessing excellent wear resistance, high temperature resistance, and corrosion resistance, resulting in a long service life.
7.Wide Applicability: A variety of valve body materials, flange standards, and sealing surface types can be selected to meet the requirements of different pressure, temperature, and media operating conditions.

Executive Standard

Design Criteria: API 600 / ASME B16.34
Structure length ASME B16.10
Butt Weld Size ASME B16.5
Test and Inspection API 598
Pressure - Temperature: ASME B16.34

API Power Station Gate Valve Parameter (Specification)

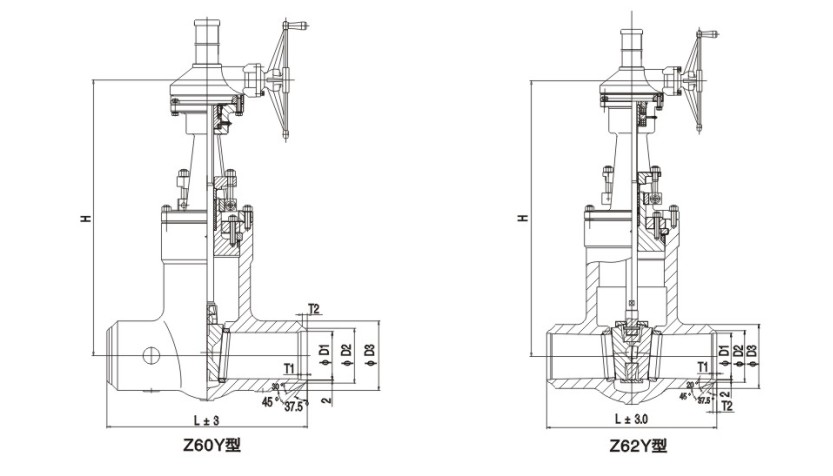

The main shape and connection dimensions

Structure picture

All text, data and pictures in this article are for reference only. If you need to see more product performance, structure size, price and other details. Please contact us.
