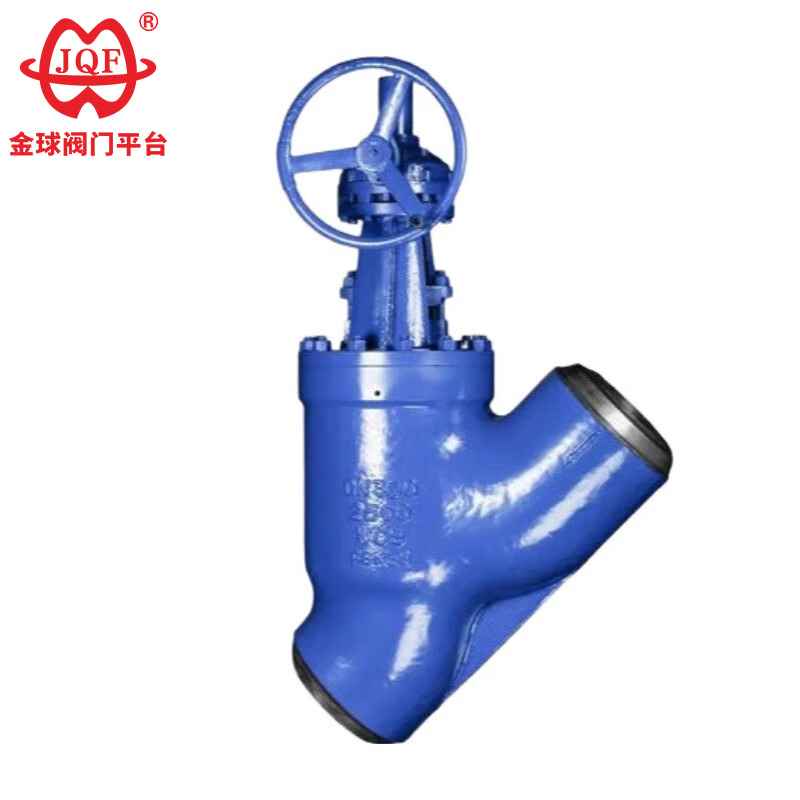

High quality Y-pattern Globe Valves is offered by China manufacturer JQF Valve. Our this valve features a stem and channel at an angle, minimizing changes in flow direction and exhibiting the lowest fluid resistance among similar valves. It is suitable for pipeline systems containing coke or solid particles. Jinqiu's mature design, exquisite craftsmanship, precision manufacturing, and professional on-site solutions have earned high recognition and praise from users. We look forward to cooperating with you.
The Y-pattern Globe Valves from JQF Valve in Guangdong is an important improvement on the straight-through gate valve. Its core design lies in setting the valve stem and flow channel centerline at a 45° angle, making the flow channel nearly straight and "Y" shaped, thereby greatly reducing fluid resistance.
The durable Y-pattern Globe Valves employs a Venturi streamlined flow channel design, significantly reducing fluid turbulence compared to traditional straight-through shut-off valves. Actual measurements show a 60% reduction in pressure loss under the same operating conditions, making it particularly suitable for energy-sensitive long-distance pipeline systems.
The sealing structure offers both planar hard seals and conical elastic seals. After passing 100,000 opening and closing cycles, it still meets API 598 leakage level VI requirements.
Its lifespan advantage is particularly prominent in refinery catalytic cracking units where adjustments are made hundreds of times daily.
Addressing the characteristics of heavy oil pipelines prone to coking and coal slurry pipelines prone to wear, the valve seat area features a removable wear-resistant bushing design.
When coke or solid particles accumulate in the cavity, quick cleaning and maintenance can be achieved through the top inspection port without removing the valve body, significantly reducing downtime.
