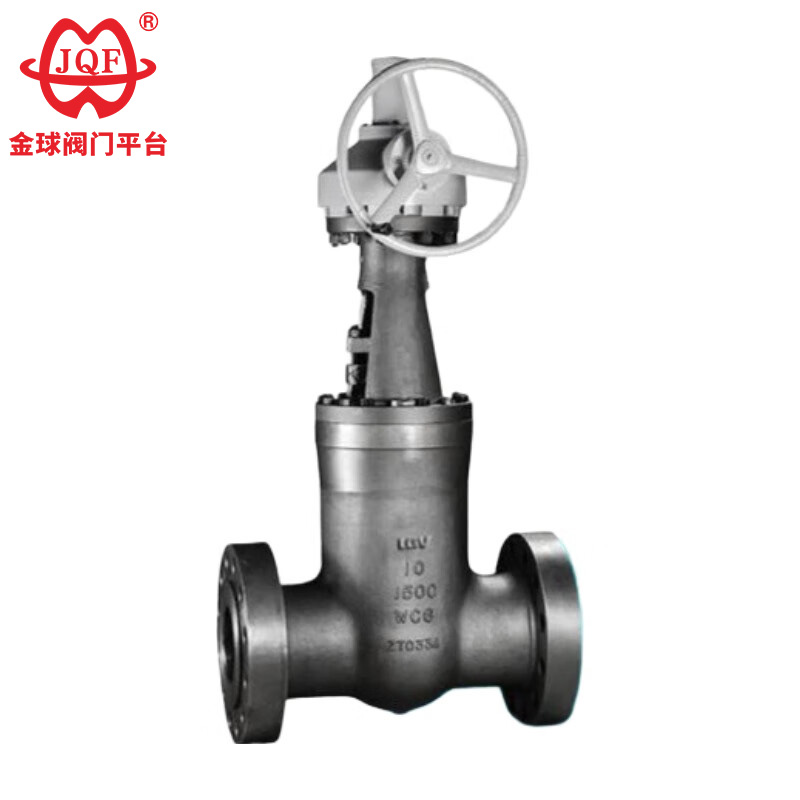

High Temperature Gate Valve

High temperature gate valves, also known as power plant valves, are primarily used in the piping systems of various systems in thermal power plants to shut off or connect the pipeline medium. Applicable medium: non-corrosive medium such as water and steam.
The zero-friction drive principle of the high-temperature gate valve overcomes the inherent limitations of traditional valves, namely, the gradual reduction of seal integrity due to surface wear during operation. The high temperature gate valve features a top-inlet design, allowing for direct online maintenance while the pipeline remains pressurized, significantly reducing equipment downtime and operating costs without system depressurization.
The integrated seat structure prevents trapped media from creating dangerous overpressure conditions, eliminating the potential risk of pressure buildup in the chamber and avoiding violations of safety regulations.
The integrated low-torque drive system, with its carefully designed stem geometry, requires minimal manual operation—even under high pressure differentials, it can typically be easily operated via a compact handwheel.
Sealing reliability stems from a mechanically driven wedge mechanism that calculates the stem thrust to forcefully engage the valve disc with the seat. This reliable mechanical engagement ensures airtight closure, unaffected by pipeline pressure fluctuations, guaranteeing consistent performance across various operating ranges. Simultaneously, the pipeline fluid generates a uniform 360° boundary layer flow across the entire circumference of the seat, mitigating erosion hotspots caused by turbulent impacts and actively flushing particulate deposits from critical sealing areas.

Advantages Compared to Other Valves

Compared with other valve products, high temperature gate valves are characterized by high temperature and high pressure, and a unique self-sealing design. The higher the pressure, the more reliable sealing. Due to the performance and technical characteristics, the special working conditions make the product form a feature that can not be replaced by other products.

Design standards

Design Standard: GB / T 12234-2007
Structure length GB / T 12221-2005
Butt welding connection size NB / T 4704-2014
Test and Inspection NB / T 4704-2014
Pressure - Temperature: NB / T 4704-2014

Performance parameters

The main part material

The main shape and connection dimensions

Structure picture

All text, data and pictures in this article are for reference only. If you need to see more product performance, structure size, price and other details. Please contact us.
