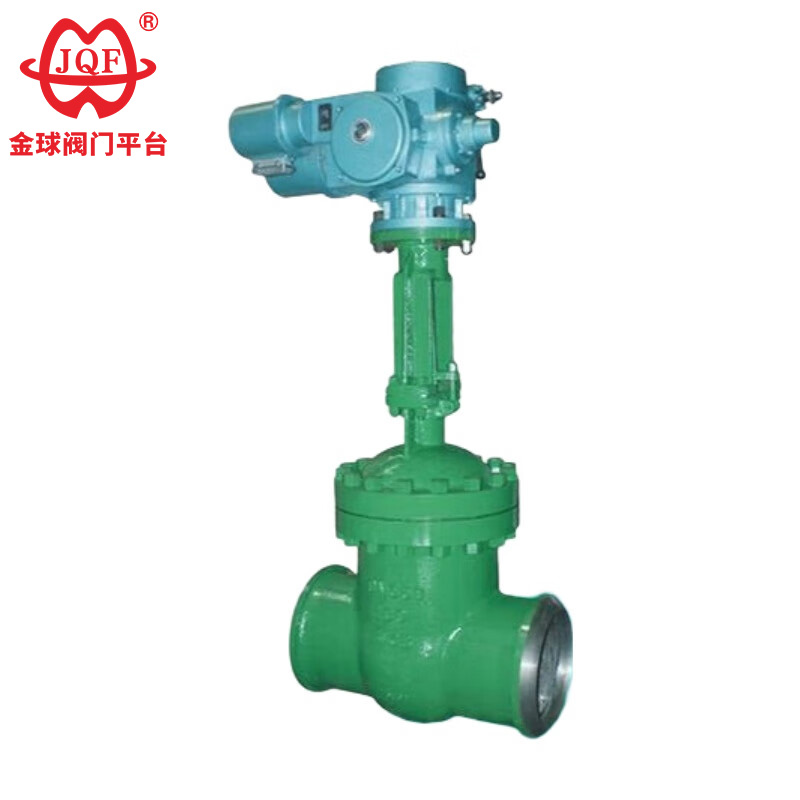

Electrical Gate Valve

JQF Valve factory not only manufactures various standard valves, but also designs and produces valves according to customer requirements. Our high-quality Electrical Gate Valve is an automated valve device that integrates an electric actuator with a gate valve body connected by a welded end. It realizes remote control, rapid opening and closing, and automated management of valves. It is particularly suitable for high-pressure, high-temperature, high-risk, or hard-to-access working conditions and is a key piece of equipment for modern industrial pipeline automation control.

Send Inquiry

Product Description

JQF Valve's high quality Electrical Gate Valve is widely used in petrochemical, thermal power plant, and other industries for connecting or shutting off medium pipelines, including those for petroleum products and steam. It is a high-quality, durable device.

Executive Standard

Design specifications: GB / T 12234
Structure length: GB / T 12221
Connecting flange: JB / T 79.1
Test and inspection: JB / T 9092
Pressure - Temperature: GB / T 9131
Product Identification: GB / T 12220

Electrical gate valves are suitable for applications that require complete opening or complete closing. In short, they are used as on/off switches, typically installed in pipelines as isolation valves, and are not suitable for flow control. When the valve is fully open, the passage is completely unobstructed, allowing the medium to flow straight through with virtually no pressure loss. Therefore, they are ideal for systems that prioritize low pressure loss and require an unobstructed flow path.

Features

1. Compact structure, reasonable design, good valve rigidity, smooth flow path, and low flow coefficient.
2. Sealing surfaces are made of stainless steel and hard alloy materials, ensuring a long service life.
3. The Electrical Gate Valve uses flexible graphite packing, ensuring reliable sealing and easy, flexible operation.
4. The Electrical Gate Valve can be driven manually, pneumatically, electrically, or by gear.
5. Three structural options are available: flexible wedge single gate, rigid wedge single gate, and double gate.

Performance Parameters

Nominal pressurePN（MPa)	case	test pressure（MPa)		Sealed
Nominal pressurePN（MPa)	case	Sealed (liquid)	Seal (gas)	Sealed
1.6	2.4	1.8	0.6	1.8
2.5	3.8	2.8	0.6	2.8
4.0	6.0	4.4	0.6	4.4
6.4	9.6	7.0	0.6	7.0
10.0	15.0	11.0	0.6	11.0
16.0	24.0	18.0	0.6	18.0

Suitable medium and applicable temperature

Shell material	Suitable media	Applicable temperature (℃)
Carbon steel (C type)	Water, steam, oil	≤425
Chromium nickel titanium steel (P type)	Nitric acids	≤200
Chrome nickel molybdenum titanium steel (R type)	Acetic acid	≤200
Chrome-molybdenum steel (type I)	Water, steam, oil	≤550

The main part material

Body, bonnet	Valve plate, seat	Valve stem	Stem nut	filler	Handwheel
Carbon steel	High-quality carbon steel + carbide or stainless steel	Chrome stainless steel	Aluminum bronze	Graphite asbestos packing	Malleable iron
Chromium nickel titanium steel	Stainless steel, stainless steel + cemented carbide	Chrome nickel-titanium stainless steel	Aluminum bronze	Teflon	Malleable iron
Chromium nickel molybdenum titanium steel	Stainless steel, stainless steel + cemented carbide	Chrome nickel-titanium stainless steel	Aluminum bronze	Teflon	Malleable iron
Chrome-molybdenum steel	Alloy steel + Carbide	Chrome-molybdenum steel	Aluminum bronze	Flexible asbestos	Malleable iron

The main shape and connection dimensions

Nominal diameter	The main dimensions and connection dimensions
Nominal diameter	L	D	D1	D2	b	Z-d	H	D0
Z41H-16
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	250	160	125	100	16-3	4-Φ18	358	240
65	265	180	145	120	18-3	4-Φ18	373	240
80	280	195	160	135	20-3	8-Φ18	435	280
100	300	215	180	155	20-3	8-Φ18	500	300
125	325	245	210	185	22-3	8-Φ18	614	320
150	350	280	240	210	24-3	8-Φ23	674	360
200	400	335	295	265	26-3	12-Φ23	811	400
250	450	405	355	320	30-3	12-Φ25	969	450
300	500	460	410	375	30-3	12-Φ25	1145	580
350	550	520	470	435	34-4	16-Φ25	1280	640
400	600	580	525	485	36-4	16-Φ30	1452	640
Z41H-25
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	250	160	125	100	20-3	4-Φ18	358	240
65	265	180	145	120	22-3	8-Φ18	373	240
80	280	195	160	135	22-3	8-Φ18	435	280
100	300	230	190	160	24-3	8-Φ23	500	300
125	325	270	220	188	28-3	8-Φ25	614	320
150	350	300	250	218	30-3	8-Φ25	674	360
200	400	360	310	278	34-3	12-Φ25	811	400
250	450	425	370	332	36-3	12-Φ30	969	450
300	500	485	430	390	40-4	16-Φ30	1145	580
350	550	550	490	448	44-4	16-Φ34	1280	640
400	600	610	550	505	48-4	16-Φ34	1452	640

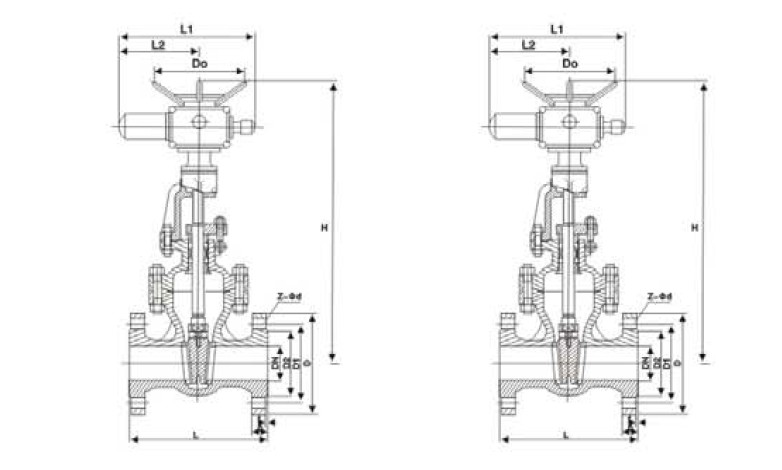

Structure picture
