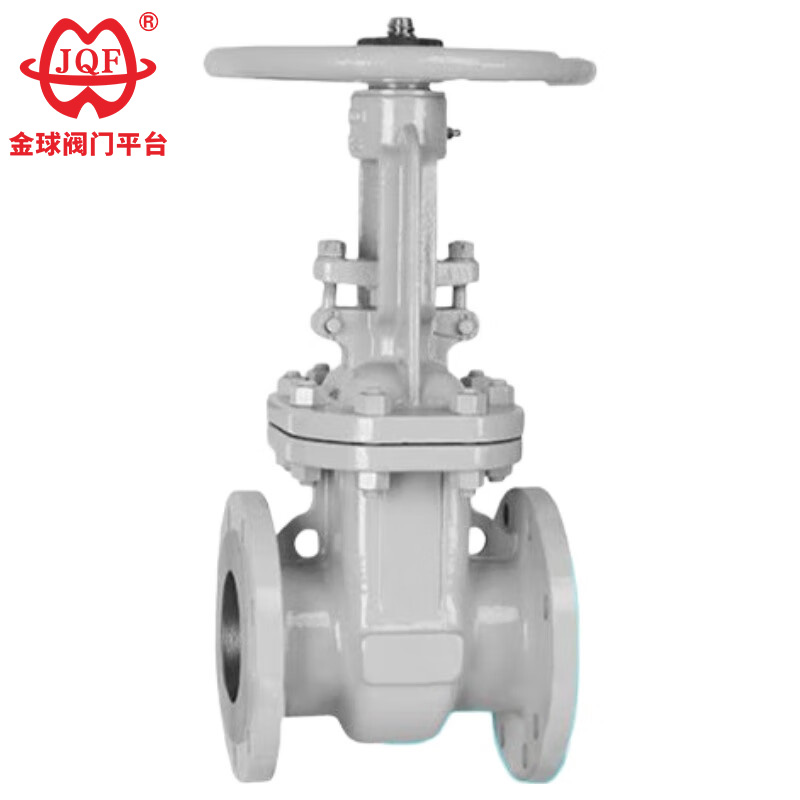

Russian Standard Gate Valve

JQF Valve is a large-scale valve manufacturer in China, who integrating scientific research, development, design, production, sales, and service. This high-quality Russian Standard Gate Valve in stock non-rising stem gate valve is made of ductile iron and equipped with a resilient rubber seal ring to ensure reliable sealing and durability. Its compact structure provides high rigidity and reliability, while the resilient gate design prevents deformation under abnormal loads or temperatures. The valve is equipped with rolling bearings for easy operation in larger sizes and supports customized materials and seat options to meet various operating conditions.

Send Inquiry

Product Description

The durable Russian Standard Gate Valve manufactured by JQF Valve is widely used in the inlet and outlet channels or media shut-off devices of oil and steam pipelines in petrochemical, thermal power and other industries. It has passed CE certification, is of high quality and durable, and ensures compliance with EU safety standards, guaranteeing market access compliance.

1. Space-Optimized Fluid Dynamics Architecture: The structurally optimized chassis design provides the valve body with exceptional rigidity and unobstructed flow geometry, minimizing pressure drop.
2. Advanced Composite Sealing Surface: The Russian Standard Gate Valve utilizes proprietary metallurgical technology to combine corrosion-resistant alloys with a tungsten carbide matrix, achieving an exceptionally long cycle life far exceeding industry standards.
3. Friction-Free Stem Operating System: Anisotropic graphite packing rings ensure a zero-leakage stem seal while providing a clear, low-torque actuation for easy and effortless operation.
4. Multi-Mode Actuation Integration: The Russian Standard Gate Valve offers comprehensive actuation compatibility, including manual handwheels, pneumatic actuators, electric motors, and planetary gear reducers, enabling universal deployment.
5.Configurable Valve Disc Topology Platform: Three different sealing configurations: pressure-adaptive flexible single gate, high-load rigid single gate, and bidirectional dual parallel gate.

Implementation Standards

Design specifications: GB / T 12234
Structure length: GB / T 12221
Connecting flange: r0CT12815-08-I
Test and inspection: JB / T 9092
Pressure - Temperature: GB / T 9131
Product Identification: GB / T 12220

Performance Parameters

Nominal pressurePN（MPa)	case	test pressure（MPa)		Sealed
Nominal pressurePN（MPa)	case	Sealed (liquid)	Seal (gas)	Sealed
1.6	2.4	1.8	0.6	1.8
2.5	3.8	2.8	0.6	2.8
4.0	6.0	4.4	0.6	4.4
6.4	9.6	7.0	0.6	7.0
10.0	15.0	11.0	0.6	11.0
16.0	24.0	18.0	0.6	18.0

Suitable medium and applicable temperature

Shell material	Suitable media	Applicable temperature (℃)
Carbon steel (C type)	Water, steam, oil	≤425
Chromium nickel titanium steel (P type)	Nitric acids	≤200
Chrome nickel molybdenum titanium steel (R type)	Acetic acid	≤200
Chrome-molybdenum steel (type I)	Water, steam, oil	≤550

The main part material

Body, bonnet	Valve plate, seat	Valve stem	Stem nut	filler	Handwheel
Carbon steel	High-quality carbon steel + carbide or stainless steel	Chrome stainless steel	Aluminum bronze	Graphite asbestos packing	Malleable iron
Chromium nickel titanium steel	Stainless steel, stainless steel + cemented carbide	Chrome nickel-titanium stainless steel	Aluminum bronze	Teflon	Malleable iron
Chromium nickel molybdenum titanium steel	Stainless steel, stainless steel + cemented carbide	Chrome nickel-titanium stainless steel	Aluminum bronze	Teflon	Malleable iron
Chrome-molybdenum steel	Alloy steel + Carbide	Chrome-molybdenum steel	Aluminum bronze	Flexible asbestos	Malleable iron

The main shape and connection dimensions

Nominal diameter	The main dimensions and connection dimensions
Nominal diameter	L	D	D1	D2	b	Z-d	H	D0
Z41H-16
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	250	160	125	100	16-3	4-Φ18	358	240
65	265	180	145	120	18-3	4-Φ18	373	240
80	280	195	160	135	20-3	8-Φ18	435	280
100	300	215	180	155	20-3	8-Φ18	500	300
125	325	245	210	185	22-3	8-Φ18	614	320
150	350	280	240	210	24-3	8-Φ23	674	360
200	400	335	295	265	26-3	12-Φ23	811	400
250	450	405	355	320	30-3	12-Φ25	969	450
300	500	460	410	375	30-3	12-Φ25	1145	580
350	550	520	470	435	34-4	16-Φ25	1280	640
400	600	580	525	485	36-4	16-Φ30	1452	640
Z41H-25
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	250	160	125	100	20-3	4-Φ18	358	240
65	265	180	145	120	22-3	8-Φ18	373	240
80	280	195	160	135	22-3	8-Φ18	435	280
100	300	230	190	160	24-3	8-Φ23	500	300
125	325	270	220	188	28-3	8-Φ25	614	320
150	350	300	250	218	30-3	8-Φ25	674	360
200	400	360	310	278	34-3	12-Φ25	811	400
250	450	425	370	332	36-3	12-Φ30	969	450
300	500	485	430	390	40-4	16-Φ30	1145	580
350	550	550	490	448	44-4	16-Φ34	1280	640
400	600	610	550	505	48-4	16-Φ34	1452	640

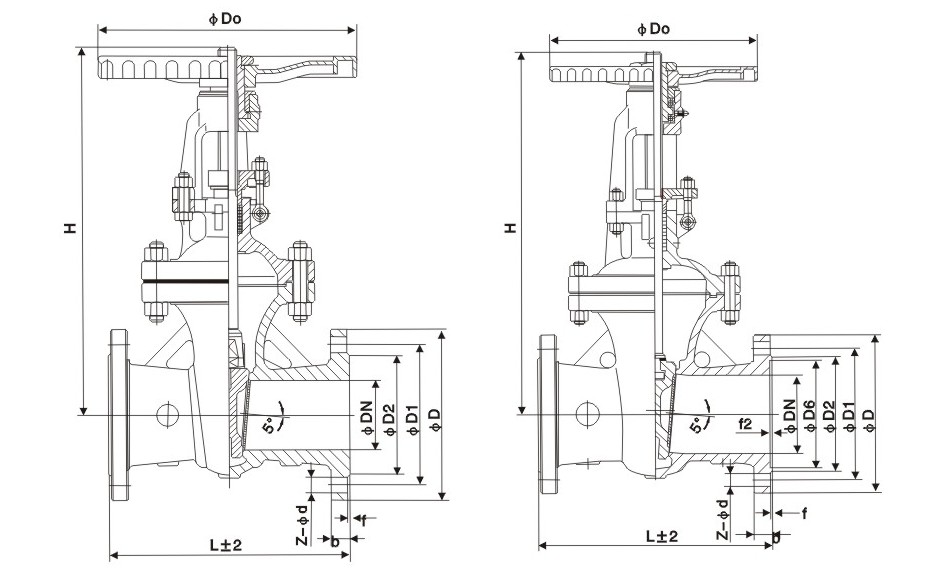

Structure picture
