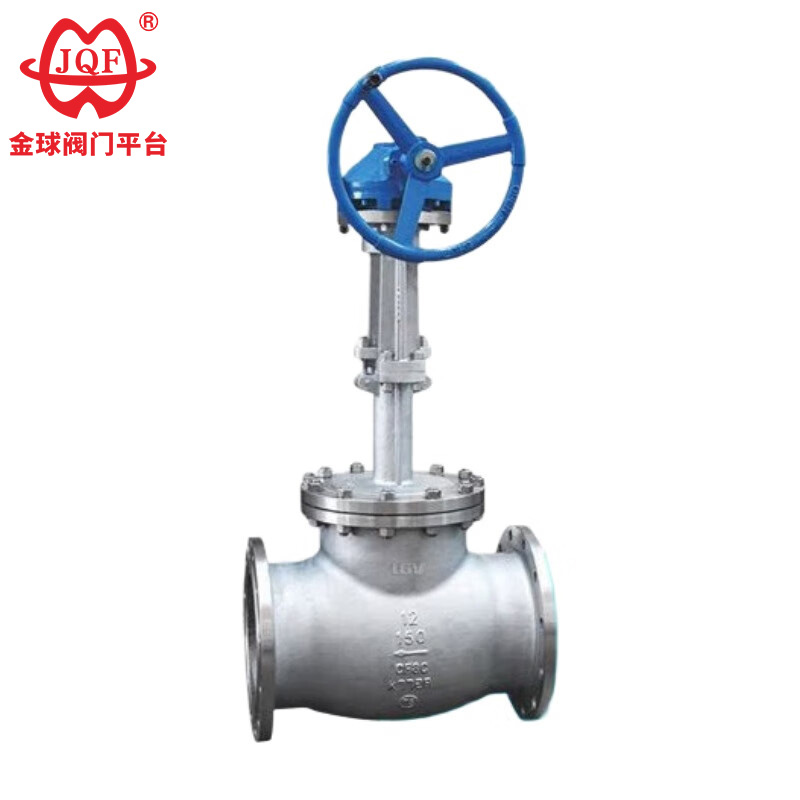

Bevel Gear Low Temperature Globe Valve

JQF Valve is a professional high quality bevel gear low temperature globe valve manufacturer specializing in the research, development, production, sales, and service of industrial valves. This bevel gear low temperature globe valve is suitable for management systems in cryogenic liquid storage and transportation equipment. It features flexible switching and reliable sealing, and can also be used in other cryogenic and low-temperature media management systems. Our products undergo rigorous quality testing, with professional personnel supervising every step to ensure product perfection. Furthermore, JQF Valves has earned a strong reputation across various industries. Choosing JQF means gaining industry expertise on valves and pneumatic actuators, professional customer service, and continuous technical support. Whether you need a single component or a complete valve assembly, we can meet your needs.

1. The valve body of the bevel gear low temperature globe valve is made of grade III ductile iron, possessing high strength, good toughness, and superior corrosion resistance.
2. The electrostatic adsorption coating uses powdered epoxy resin, effectively blocking corrosive media and exhibiting excellent wear resistance, high-temperature resistance, and environmental performance.
3. The thickened valve body ensures stable valve performance; overall anti-oxidation treatment prevents rust and corrosion.

Executive Standards

Design and manufacturing: JB / T7749-95
Structure length: GB / T12221-89
Connector: GB / T9113-2000, HG20592-97, SH3406-96GB / T12224-89
Inspection and test: JB / T7749-95

Main appearance and connection dimensions

Nominal diameter	Main external dimensions and connection dimensions							H
	L	D	D1	D2	b	Z-d	D0	-46℃	-101℃	-196℃
DJ41Y-16C DJ41Y-16P DJ41Y-16R DJ641Y-16C DJ641Y-16P DJ641Y-16R DJ9B41Y-16C DJ9B41Y-16P DJ9B41Y-16R
50	230	160	125	100	16	4-18	240	460	480	520
65	290	180	145	120	18	4-18	280	475	505	525
80	310	195	160	135	20	4-18	280	520	550	590
100	350	215	180	155	20	8-18	320	545	575	615
125	400	245	210	185	22	8-18	360	590	620	660
150	480	280	240	210	24	8-23	400	650	650	730
200	600	335	295	265	26	12-23	400	850	850	930
250	730	405	355	320	30	12-25	450	956	986	1036
300	850	460	410	375	30	12-25	500	1095	1125	1175
DJ41Y-25 DJ41Y-25P DJ41Y-25R DJ641Y-25C DJ641Y-25P DJ641Y-25R DJ9B41Y-25C DJ9B41Y-25P DJ9B41Y-25R
50	230	160	125	100	20	4-18	240	460	480	520
65	290	180	145	120	22	8-18	280	475	505	525
80	310	195	160	135	22	8-18	280	520	550	590
100	350	230	190	160	24	8-23	320	545	575	615
125	400	270	220	188	28	8-25	360	590	620	660
150	480	300	250	218	30	8-25	400	650	680	730
200	600	360	310	278	34	12-25	400	850	880	930
250	730	425	370	332	36	12-30	450	956	986	1036
300	850	485	430	390	40	16-30	500	1095	1125	1175
DJ41Y-40 DJ41Y-40P DJ41Y-40R DJ641Y-40C DJ641Y-40P DJ641Y-40R DJ9B41Y-40C DJ9B41Y-40P DJ9B41Y-40R
50	230	160	125	100	20	-	240	483	504	546
65	290	180	145	120	22	-	280	499	530	551
80	310	195	160	135	22	-	280	546	578	620
100	350	230	190	160	24	-	320	572	604	646
125	400	270	220	188	28	-	360	620	61	693
150	480	300	250	218	30	-	400	683	741	767
200	600	360	320	282	38	-	400	893	924	977
250	730	425	385	345	42	-	450	1004	1035	1088
300	850	485	450	408	46	-	500	1150	1181	1234
