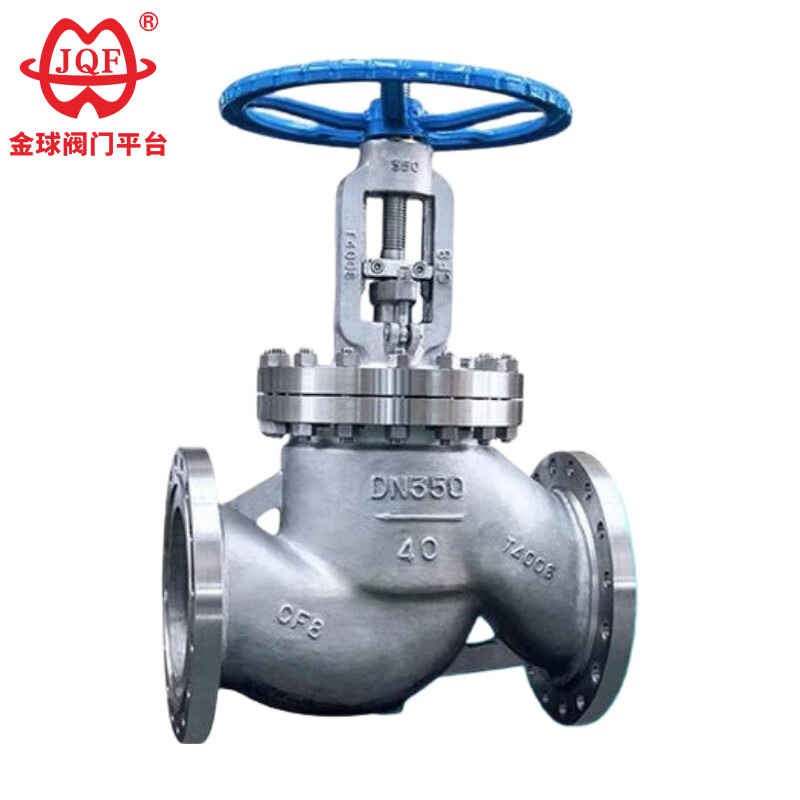

As a valve manufacturing supplier integrating R&D, design, production, sales, and service, JQF Valve factory boasts a complete technical team and quality management system. Our products are widely used in various fields such as petroleum, chemical, power plant, environmental protection, coal mining, drainage, and new energy. The high quality high pressure stainless steel globe valves are designed for durability and reliability, suitable for various media and temperature conditions. We continuously pursue perfection and are committed to integrity with every customer, providing them with superior products and services. We sincerely welcome new and old customers to visit, call, or write to discuss business.
1. High-strength valve stem material, tightly connected to the valve body, ensuring smooth rotation and easy operation.
2. Carefully selected screws ensure a tight, sturdy, and rust-resistant connection.
3. Stainless steel valve body provides high pressure stainless steel globe valves good corrosion resistance and rust prevention.
4. Thickened flanges are made of solid material and securely connected.
1. Convenient and Quick
Simple structure, easy to manufacture and maintain.
2. Fast Switching, Small Action
Short working stroke, rapid opening and closing response.
3. Durable
Tight seal, wear-resistant and robust, long service life.
Design specification: GB / T 12235
Structure length: GB / T 12221
Flange connection: JB / T 79
Test and inspection: JB / T 9002
Product identification: GB / T 12220
Supply specification: JB / T 7928

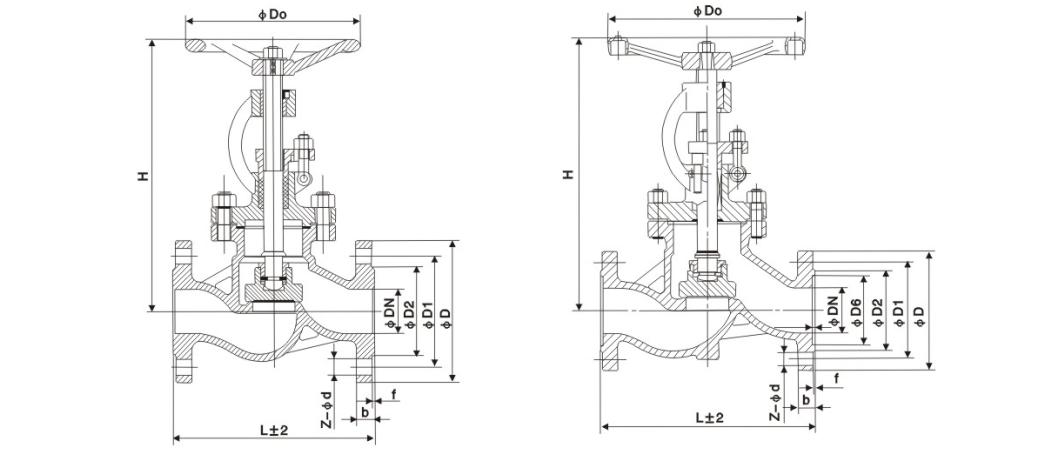

| Nominal diameter | Main external dimensions and connection dimensions | |||||||
| L | D | D1 | D2 | b | Z-d | H | D0 | |
| J41H-16C | ||||||||
| 15 | 130 | 95 | 65 | 45 | 14-2 | 4-Φ14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-Φ14 | 190 | 140 |
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-Φ14 | 205 | 160 |
| 32 | 180 | 135 | 100 | 78 | 16-2 | 4-Φ18 | 270 | 180 |
| 40 | 200 | 145 | 110 | 85 | 16-3 | 4-Φ18 | 310 | 200 |
| 50 | 230 | 160 | 125 | 100 | 16-3 | 4-Φ18 | 358 | 240 |
| 65 | 290 | 180 | 145 | 120 | 18-3 | 4-Φ18 | 373 | 240 |
| 80 | 310 | 195 | 160 | 135 | 20-3 | 8-Φ18 | 435 | 280 |
| 100 | 350 | 215 | 180 | 155 | 20-3 | 8-Φ18 | 500 | 300 |
| 125 | 400 | 245 | 210 | 185 | 22-3 | 8-Φ18 | 614 | 320 |
| 150 | 480 | 280 | 240 | 210 | 24-3 | 8-Φ23 | 674 | 360 |
| 200 | 600 | 335 | 295 | 265 | 26-3 | 12-Φ23 | 811 | 400 |
| 250 | 650 | 405 | 355 | 320 | 30-3 | 12-Φ25 | 969 | 450 |
| 300 | 750 | 460 | 410 | 375 | 30-3 | 12-Φ25 | 1145 | 580 |
| 350 | 850 | 520 | 470 | 435 | 34-4 | 16-Φ25 | 1280 | 640 |
| 400 | 980 | 580 | 525 | 485 | 36-4 | 16-Φ30 | 1452 | 640 |
| J41H-25C | ||||||||
| 15 | 130 | 95 | 65 | 45 | 16-2 | 4-Φ14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-Φ14 | 190 | 140 |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-Φ14 | 205 | 160 |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-Φ18 | 270 | 180 |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-Φ18 | 310 | 200 |
| 50 | 230 | 160 | 125 | 100 | 20-3 | 4-Φ18 | 358 | 240 |
| 65 | 290 | 180 | 145 | 120 | 22-3 | 8-Φ18 | 373 | 240 |
| 80 | 310 | 195 | 160 | 135 | 22-3 | 8-Φ18 | 435 | 280 |
| 100 | 350 | 230 | 190 | 160 | 24-3 | 8-Φ23 | 500 | 300 |
| 125 | 400 | 270 | 220 | 188 | 28-3 | 8-Φ25 | 614 | 320 |
| 150 | 480 | 300 | 250 | 218 | 30-3 | 8-Φ25 | 674 | 360 |
| 200 | 600 | 360 | 310 | 278 | 34-3 | 12-Φ25 | 811 | 400 |
| 250 | 650 | 425 | 370 | 332 | 36-3 | 12-Φ30 | 969 | 450 |
| 300 | 750 | 485 | 430 | 390 | 40-4 | 16-Φ30 | 1145 | 580 |
| 350 | 850 | 550 | 490 | 448 | 44-4 | 16-Φ34 | 1280 | 640 |
| 400 | 980 | 610 | 550 | 505 | 48-4 | 16-Φ34 | 1452 | 640 |
