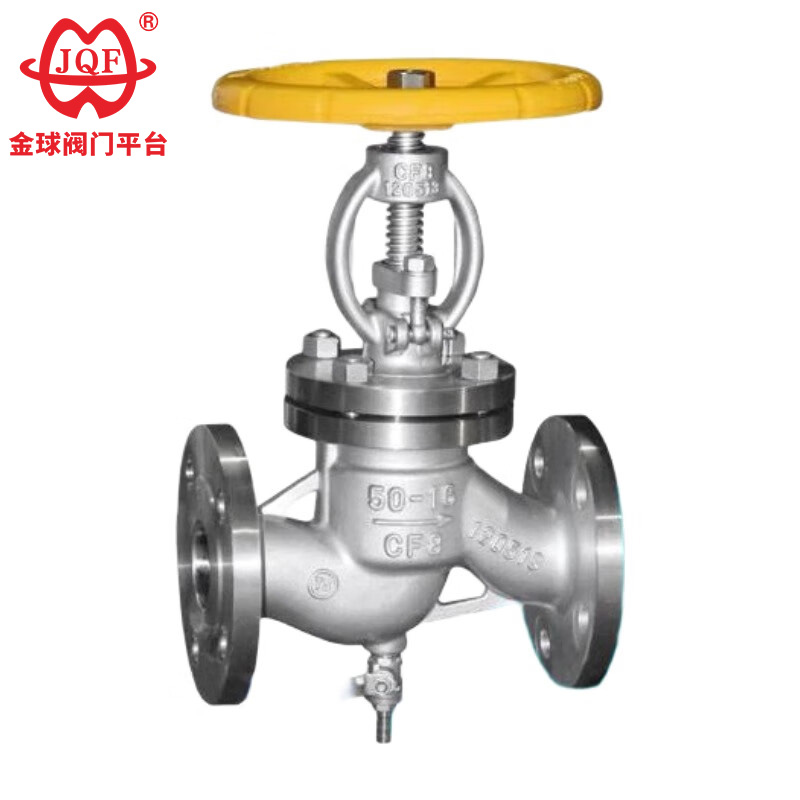

Antibiotic Globe Valve

Guangdong Jinqiu Valve Technology Co., Ltd. is a Chinese valve manufacturer and supplier. For many years, we have focused on the research, development, production, and sales of valves and valve-related pipes and fittings. Our antibiotic globe valve features replaceable gaskets, easy disassembly, and low maintenance costs. It also boasts strong bactericidal and detoxifying properties, preventing product contamination by bacteria. Our products offer significant price advantages and cover most of China, as well as Europe, Southeast Asia, and the Middle East. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

The quality antibiotic globe valve manufactured by JQF Valve factory is mainly used in fields such as biological fermentation, pharmaceutical and beer fermentation, amino acid fermentation, biopesticide fermentation, biofertilizer fermentation, various antibiotic fermentation, biological, biochemical, chemical, pharmaceutical materials, water, steam, and cold control. The bottom hole can be opened according to customer needs. It is resistant to high temperature, has a long service life, no dead angles, and zero leakage.

1) The antibiotic globe valve is rationally designed with no dead angles, effectively reducing the infection rate in drug production and providing reliable assurance for aseptic antibiotic production;
2) The antibiotic globe valve has a precise structure and excellent sealing performance, preventing leakage, spillage, dripping, and regurgitation, saving energy consumption and providing favorable conditions for civilized production in the workshop;
3) The antibiotic globe valve is made of reliable materials, finely manufactured and durable. The seals are made of polytetrafluoroethylene, which has strong corrosion resistance. During major overhauls, only the gasket needs to be replaced, facilitating disassembly and maintenance, reducing costs and improving economic efficiency.

Design and manufacture of standards

Design and manufacture: GB / T12235
Flange size: JB / T79.1
Structure length: GB / T12221
Inspection and testing: JB / T9092

Main performance specifications

Nominal pressure	1.6 MPa
test pressure	Strength test	2.4 MPa
	Seal test	1.76 MPa
	Seal test	1.76 MPa
	Gas seal test	0.6 MPa
The maximum working temperature	120℃
Suitable media	Water, steam, food and so on

The main shape and connection dimensions

Nominal diameter	The main dimensions and connection dimensions
Nominal diameter	L	D	D1	D2	b	Z-d	H	D0
J41F-16C
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	230	160	125	100	16-3	4-Φ18	358	240
65	290	180	145	120	18-3	4-Φ18	373	240
80	310	195	160	135	20-3	8-Φ18	435	280
100	350	215	180	155	20-3	8-Φ18	500	300
125	400	245	210	185	22-3	8-Φ18	614	320
150	480	280	240	210	24-3	8-Φ23	674	360
200	600	335	295	265	26-3	12-Φ23	811	400
250	650	405	355	320	30-3	12-Φ25	969	450
300	750	460	410	375	30-3	12-Φ25	1145	580
350	850	520	470	435	34-4	16-Φ25	1280	640
400	980	580	525	485	36-4	16-Φ30	1452	640
J41F-25C
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	230	160	125	100	20-3	4-Φ18	358	240
65	290	180	145	120	22-3	8-Φ18	373	240
80	310	195	160	135	22-3	8-Φ18	435	280
100	350	230	190	160	24-3	8-Φ23	500	300
125	400	270	220	188	28-3	8-Φ25	614	320
150	480	300	250	218	30-3	8-Φ25	674	360
200	600	360	310	278	34-3	12-Φ25	811	400
250	650	425	370	332	36-3	12-Φ30	969	450
300	750	485	430	390	40-4	16-Φ30	1145	580
350	850	550	490	448	44-4	16-Φ34	1280	640
400	980	610	550	505	48-4	16-Φ34	1452	640
