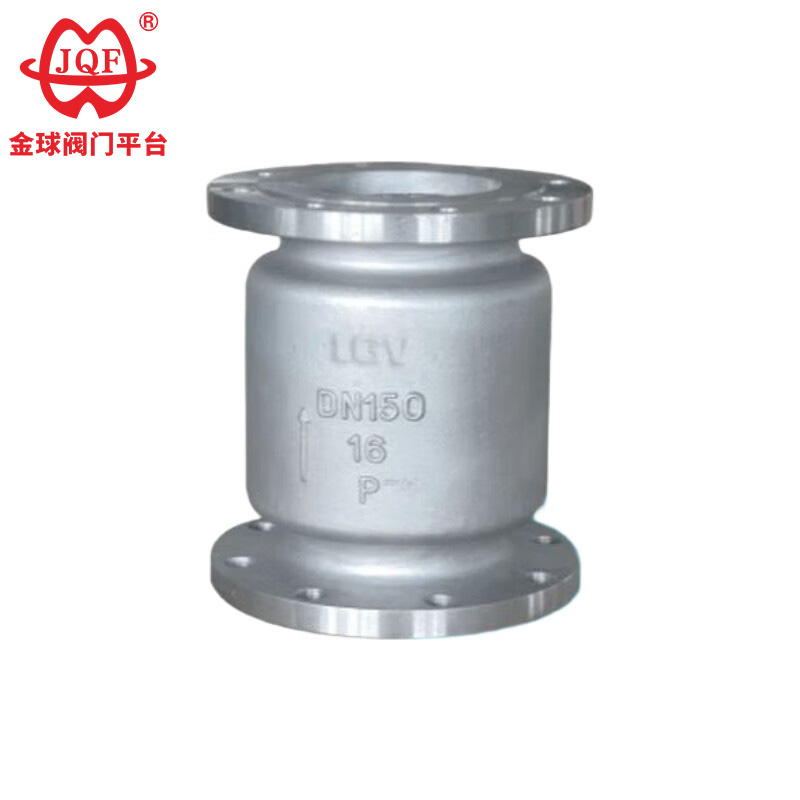

Power Station Check Valve

Jinqiu Valve durable power station check valves are suitable for water supply, drainage, fire protection, and HVAC systems. They can be installed at the pump outlet to prevent backflow and water hammer damage. We adhere to the principle of "customer first," strive to build a positive corporate image, and enhance corporate cohesion. We aim to forge alliances with all sectors of society, achieve mutual trust, and seek long-term cooperative relationships for mutual development and a brilliant future.

Send Inquiry

Product Description

High quality power station check valves are offered by China manufacturer Jinqiu Valve. Our these valves can be used in preventing fluid backflow. The valve disc opens under fluid pressure, allowing fluid to flow from the inlet to the outlet. When the pressure at the inlet is lower than at the outlet, the valve disc automatically closes under the influence of fluid pressure differential, its own weight, and other factors to prevent fluid backflow.

Main Parts and Materials

Part Name	material
Body	Cast iron, ductile iron, carbon steel
Flow guide	Cast iron, ductile iron, carbon steel
Seat	Bronze, chrome stainless steel
Disc	Bronze, chrome stainless steel
axis	Bronze, chrome stainless steel
spring	stainless steel

Features

HC42X, HC42T, HC42H type PN10 ~ PN25 muffler check valve internal flow channel streamlined design, minimal pressure loss, valve opening and closing stroke is very short, stop the pump can quickly shut down to prevent the huge water hammer sound, the formation of mute effect.
1. Good Corrosion Resistance: Made of corrosion-resistant stainless steel, the power station check valve maintains its performance even under harsh cleaning conditions.
2.High Sealing Capability: With a high-precision sealing design, the valve achieves zero leakage, ensuring system integrity.
3. Easy Installation and Maintenance: With multiple port options, the power station check valve allows for quick assembly/disassembly and reduces maintenance work.

The main shape and connection dimensions

model	Nominal diameter	D1		D2		D3			N-ΦD		L
model	Nominal diameter	1.0MPa	1.6 MPa	1.0MPa	1.6 MPa	1.0MPa		1.6 MPa	1.0MPa	1.6MPa	L
H42H	DN300	370		400	410	460			12-13	12-28	181
H42H	DN350	429		460	470	520			16-23	16-28	184
H42H	DN400	480		515	525	580			16-28	16-31	191
H42H	DN450	530		565	585	640			20-28	20-31	203
H42H	DN500	582		620	650	715			20-28	20-34	219
H42H	DN600	682		725	770	810	840		20-31	20-37	222
H42H	DN700	794		840	840	895	910		24-31	24-37	280
H42H	DN800	901		950	950	1015	1025		24-34	24-40	356
H42H	DN900	1001		1050	1050	1125	1125		28-40	28-40	368
H42H	DN1000	1112		1160	1170	1230	1255		28-43	28-43	432
H42H	DN1200	-		1380	1390	1455	1485		32-49	32-49	524

Hot Tags: Power Station Check Valve, China, Customized, Quality, Durable, Advanced, Manufacturer, Supplier, Factory, in Stock
