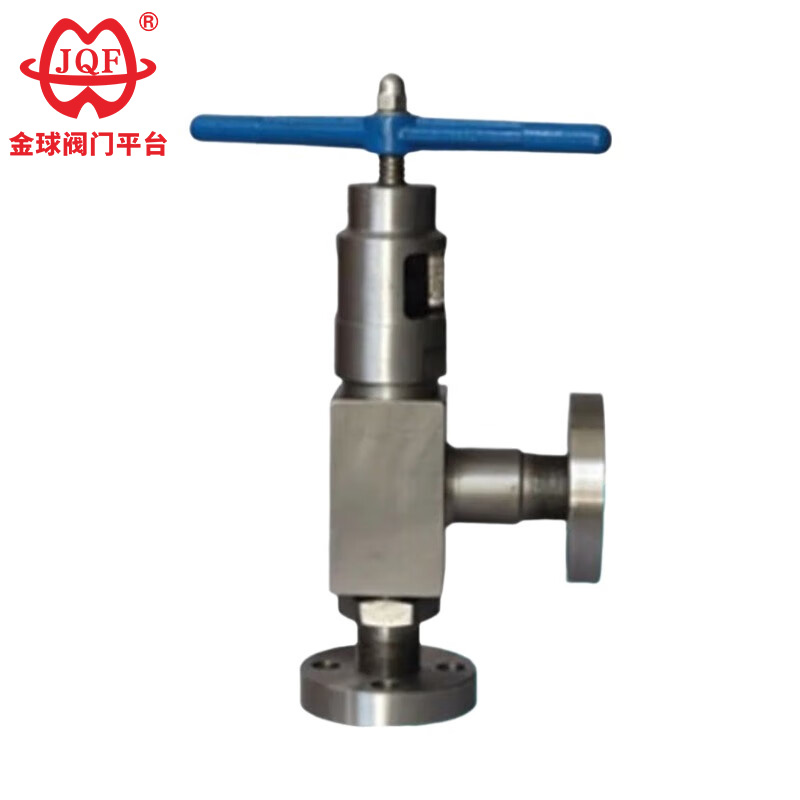

High Pressure Angle Type Globe Valve

JQF Valve is a valve factory and manufacturer in China, who engaged in the service and trade of stainless steel and carbon steel ball valves, gate valves, globe valves, check valves, etc. This durable high pressure angle type globe valve utilizes cutting-edge global valve technology and is ideally suited for use in synthetic ammonia production systems and fertilizer plant refrigeration systems. It is durable and easy to maintain. We provide one-stop, high-quality valve solutions to customers worldwide.

Send Inquiry

Product Description

The biggest advantage of this customized high pressure angle type globe valve manufactured by Foshan Jinqiu Valve Co., LTD. supplier is that it can be installed at bends in piping systems, eliminating the need for 90° elbows and simplifying operation. This type of valve is ideally suited for use in synthetic ammonia production systems and refrigeration systems in fertilizer plants. For example, models J44H-160, J44H-320, L44H-160, and L44H-320 are all specifically designed for ammonia production systems.

Why Choose Us?

Wide selection of models:
We offer a wide range of diameters of high quality high pressure angle type globe valve from DN15 to DN200, as well as different pressure classes such as 1.6MPa and 2.5MPa (see specification table above) to meet your different pipeline layout and pressure requirements.
Perfect service support:
Professional consultation: Our technical team can provide you with selection support to ensure that the valve perfectly matches your system.
Quality Assurance: We provide a clear warranty period for our products and support sample testing.
Convenient logistics: Strong bundling packaging, key components have clear color code, convenient for you to count and install on site, we can also arrange efficient international transportation.

Implementation Standards

Follow the rules	STANDARD
Design and manufacture	GB 12233/GB 12235
Structure length	GB 12221/JB96（Long series）
Structure length	GB78/JB79（GB、HG、SH）
Pressure test	GB/T 13927
Sign	GB 12220
Availability	GB/T12252

Angle valve / throttle 1.6MPa main connection size

DN	L	D	D1	D2	f	b	z-φd	Do	H1	H2
15	65	95	65	45	2	14	4-φ14	100	240	265
20	75	105	75	55	2	16	4-φ14	100	245	270
25	80	115	85	65	2	16	4-φ14	120	250	275
32	95	135	100	78	2	18	4-φ18	140	260	290
40	100	145	110	85	2	18	4-φ18	140	290	325
50	115	160	125	100	2	20	4-φ18	160	300	335
65	145	180	145	120	2	20	4-φ18	180	355	400
80	155	195	160	135	2	22	4-φ18	240	400	450
100	175	215	180	155	2	24	8-φ18	240	455	495
125	200	245	210	185	2	26	8-φ18	280	530	560
150	240	280	240	210	2	28	8-φ23	320	605	650
200	275	335	295	265	2	30	8-φ23	360	650	770

Angle valve / throttle 2.5MPa main connection size

DN	L	D	D1	D2	f	b	z-φd	Do	H1	H2
15	65	95	65	45	2	16	4-φ14	120	245	270
20	75	105	75	55	2	16	4-φ14	120	250	275
25	80	115	85	65	2	16	4-φ14	140	260	290
32	95	135	100	78	2	18	4-φ18	140	290	325
40	100	145	110	85	3	18	4-φ18	160	300	335
50	115	160	125	100	3	20	4-φ18	180	355	400
65	145	180	145	120	3	22	8-φ18	220	400	450
80	155	195	160	135	3	22	8-φ18	280	450	495
100	175	230	190	160	3	24	8-φ23	320	530	590
125	200	270	220	188	3	28	8-φ25	380	600	650
150	240	300	250	218	3	30	8-φ25	400	650	770
200	275	360	310	278	3	34	12-φ23	450	700	850
