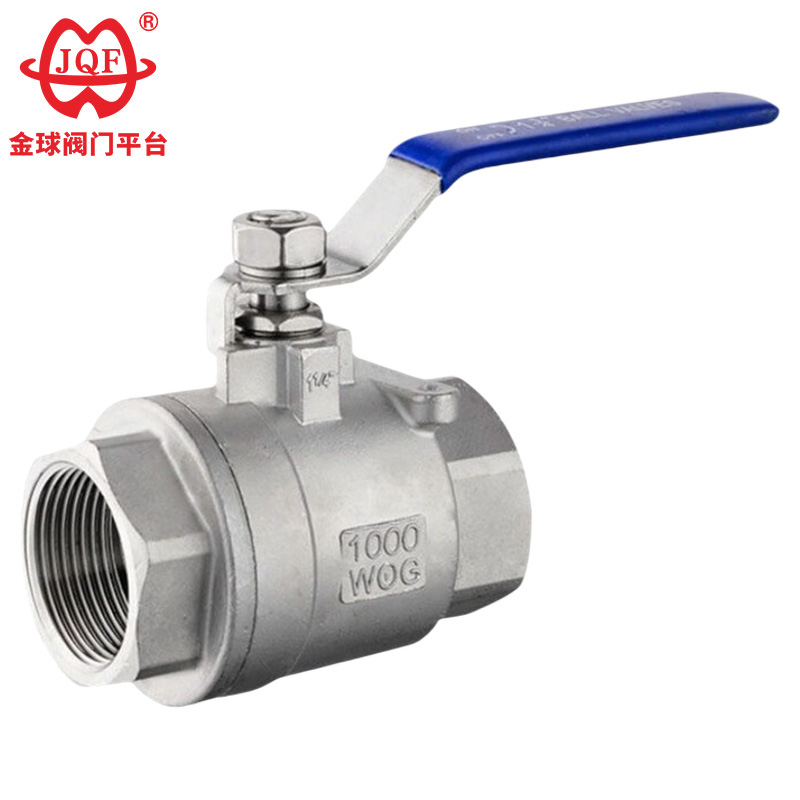

2PC Two-Piece Ball Valve

Q11F type PN16 ~ PN64 two-piece ball valve for pressure 1.6 ~ 6.4MPa working temperature -20 ~ +232 ℃ chemical, petroleum, pharmaceutical, food, beverage, cosmetics and other conditions of the pipeline, the applicable medium is Water, oil, gas and certain corrosive liquids.

Features

Q11F Two-Piece Ball Valve is manually operated with a 90° rotation to quickly open or close the pipeline, belonging to a quarter-turn valve. The two-piece structure allows for easy maintenance and replacement of internal components. Its main role is to cut off or connect the medium in the pipeline. The valve features a floating ball design, an anti-blow-out stem structure, and an elastic sealing structure, ensuring reliable sealing and easy operation. It is widely used for flow control in various industrial and civil piping systems due to its compact structure, small fluid resistance, and long service life.

Performance parametersmodelQ11F-16P~64PQ11F-16R~64RWork pressure（MPa）1.6~6.41.6~6.4Proper temperature（℃）≤232≤232Suitable mediaWater, oil, gas, weak corrosive mediumWater, oil, gas, corrosive mediumMaterialBody, bonnet, ball, stem: CF8 (304 Stainless Steel)Body, bonnet, ball, stem: CF8M (316 Stainless Steel)Sealing surfacePTFE / RPTFE / PPLPTFE / RPTFE / PPL
