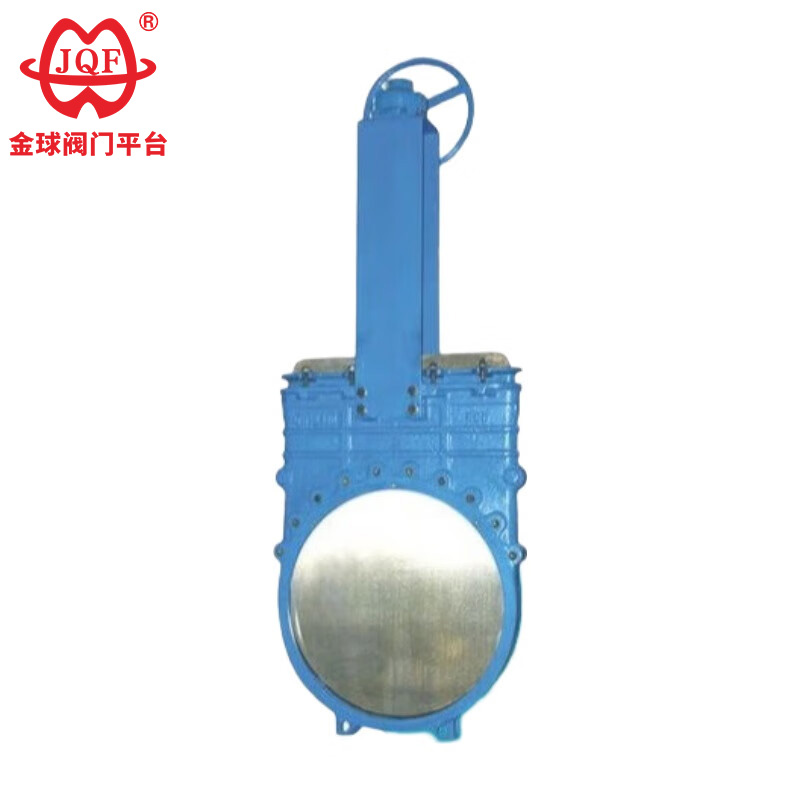

Knife Gate Valves

JQF Valve manufactures high quality knife gate valves that can be used in media such as coal, filter slurry, wastewater, mud, dirt, pulp, and ash slurry. A knife gate valve, also known as a blade-type slurry valve, is a type of valve where the opening and closing part is a gate, and the gate's movement direction is perpendicular to the fluid flow direction. The medium is cut by the blade-shaped gate, and it can also cut fibrous materials.

Send Inquiry

Product Description

As a professional knife gate valves manufacturer, JQF Valve offers customized solutions to meet customer needs, thanks to our innovative concepts, flexible applications, and independent R&D team. Our knife gate valve is not a standard industrial valve category name, but rather a functional descriptive term, generally referring to gate valves used to shut off, connect, or regulate water flow. It is one of the most common and basic shut-off valves in various water systems (water supply, drainage, fire protection, irrigation, etc.). The core feature of the durable knife gate valve is its design specifically for water media, with materials, seals, and structure optimized for water characteristics.

1. Multi-mode Intelligent Control: The knife gate valve features both local and remote control modes and can be expanded to include remote location indication and a central cluster control system as needed.
2. Lightweight and Innovative Design: The valve body is made of carbon steel, reducing weight by approximately 20%-30% compared to traditional gate valves, significantly reducing installation and maintenance workload.
3. Optimized System Efficiency: Effectively improves the opening and closing tightness and sealing reliability of pipeline systems, maximizing the suppression of leakage risks and contributing to the coordinated development of production energy efficiency and environmental protection.
4.Breakthrough in Ceramic Sealing Technology: The sealing surface of the knife gate valve uses highly wear-resistant and corrosion-resistant ceramic materials, combined with an embedding process, possessing superior corrosion resistance and excellent wear resistance, significantly extending the valve's service life. Its overall cost-effectiveness is more than 10 times that of ordinary valves.

Features

1. Low fluid resistance. Knife gate valve’s resistance coefficient is equal to that of a pipe section of the same length.
2. This valve a simple structure, small size, and light weight.
3. Tight and reliable sealing. Currently, plastic is widely used as the sealing surface material for ball valves, offering good sealing performance and widespread application in vacuum systems.
4. Knife gate valves are easy to operate and open/close quickly. They only require a 90° rotation from fully open to fully closed, facilitating remote control.
5. Long service life: Reasonable material selection and structural design ensure stable operation for decades under water conditions.
6. High cost-effectiveness: Mature technology, large-scale production, and low procurement and maintenance costs.

Installation and Use Instructions

1. Valve Cavity Pre-inspection Requirements: Before installing the knife gate valve, thoroughly inspect the cavity and sealing surfaces, ensuring no dirt or grit remains.
2. Evenly Tighten Connections: Tighten all bolts evenly at all connection points.
3. Packing Adjustment Standards: Inspect the packing and compact it appropriately. While achieving a sealing function, ensure smooth and unobstructed gate opening and closing.
4. Verify Model and Flow Direction: Before installation, users must verify the knife gate valve model and connection dimensions, and confirm that the medium flow direction matches the valve markings.
5. Reserve Operating Space: During installation, users should reserve sufficient operating and installation space for the knife gate valve actuator.
6. Drive Unit Wiring Specifications: The wiring connections of the actuator must strictly adhere to the accompanying circuit diagram.
7. Periodic Maintenance and Protection: The knife gate valve requires routine maintenance as specified. Avoid any form of impact or pressure to prevent seal failure. 8. Post-overhaul testing of valve body: After completing the overhaul of the knife gate valve, the user should conduct necessary tests on the product performance to confirm that it has been restored to a usable state.

Use and Maintenance

1. Prohibition of Suspension and Collision Prevention: Lifting operations using handwheels, handles, and transmission mechanisms are strictly prohibited. Avoid any external impact.
2. Vertical Installation Specifications: Double gate valves must be installed vertically (valve stem vertical, handwheel at the top).
3. Bypass Valve Operation Sequence: When opening a gate valve with a bypass valve, the bypass device must be activated first (to balance the inlet and outlet pressure difference and reduce opening resistance).
4. Actuator Installation Requirements: The installation of gate valves with transmission mechanisms must strictly follow the technical specifications in the product manual.
5. Regular Lubrication System: Frequently used knife gate valves should be lubricated at least once a month.

The main shape and connection dimensions

Nominal diameter	The main dimensions and connection dimensions
Nominal diameter	L	D	D1	D2	b	Z-d	H	D0
PZ73X/H-10C
50	50	160	125	100	16-3	4-Φ18	285	180
65	50	180	145	120	18-3	4-Φ18	298	180
80	50	195	160	135	20-3	8-Φ18	315	220
100	50	215	180	155	20-3	8-Φ18	365	220
125	50	245	210	185	22-3	8-Φ18	400	230
150	60	280	240	210	24-3	8-Φ23	475	280
200	60	335	295	265	26-3	12-Φ23	540	360
250	70	405	355	320	30-3	12-Φ25	630	360
300	80	460	410	375	30-3	12-Φ25	780	400
350	90	520	470	435	34-4	16-Φ25	885	400
400	100	580	525	485	36-4	16-Φ30	990	400
450	120	640	585	545	40-4	20-Φ30	1100	530
500	130	705	650	608	44-4	20-Φ34	1200	530
600	140	840	770	718	48-5	20-Φ36	1450	600
700	165	910	840	788	50-5	24-Φ41	1700	600
800	190	1020	950	898	52-5	24-Φ41	2000	680
900	203	1120	1050	998	54-5	28-Φ41	2300	680
PZ73X/H-16C
50	50	160	125	100	20-3	4-Φ18	285	180
65	50	180	145	120	22-3	8-Φ18	298	180
80	50	195	160	135	22-3	8-Φ18	315	220
100	50	230	190	160	24-3	8-Φ23	365	220
125	50	270	220	188	28-3	8-Φ25	400	230
150	60	300	250	218	30-3	8-Φ25	475	280
200	60	360	310	278	34-3	12-Φ25	540	360
250	70	425	370	332	36-3	12-Φ30	630	360
300	80	485	430	390	40-4	16-Φ30	780	400
350	90	550	490	448	44-4	16-Φ34	885	400
400	100	610	550	505	48-4	16-Φ34	990	400
450	120	640	585	545	40-4	20-Φ30	1100	530
500	130	705	650	608	44-4	20-Φ34	1200	530
600	140	840	770	718	48-5	20-Φ36	1450	600
700	165	910	840	788	50-5	24-Φ41	1700	600
800	190	1020	950	898	52-5	24-Φ41	2000	680
900	203	1120	1050	998	54-5	28-Φ41	2300	680

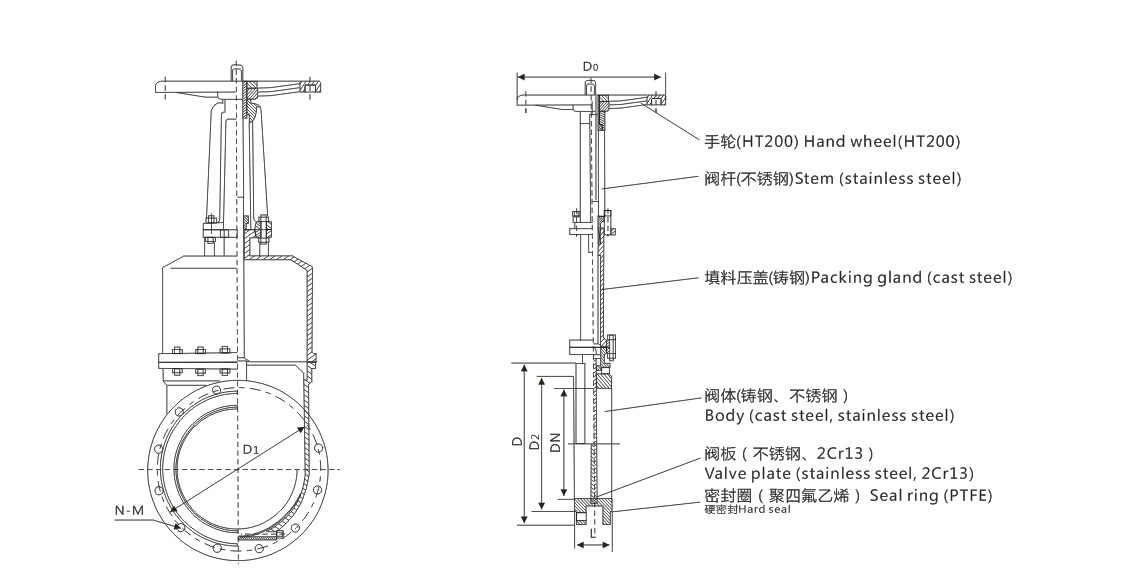

Structure picture
